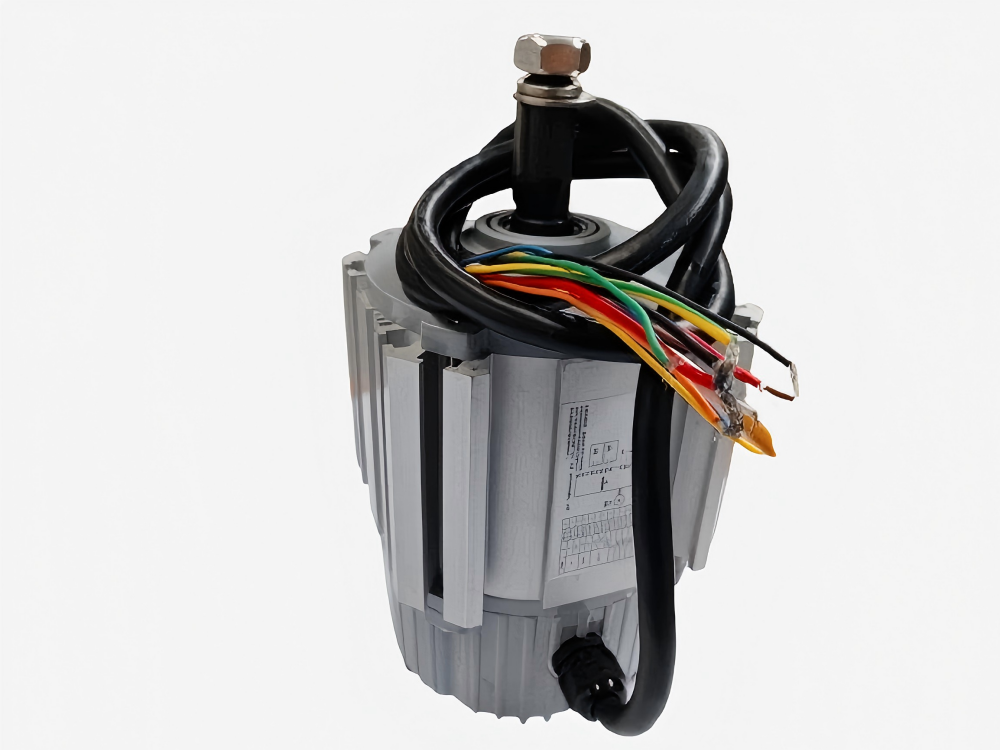

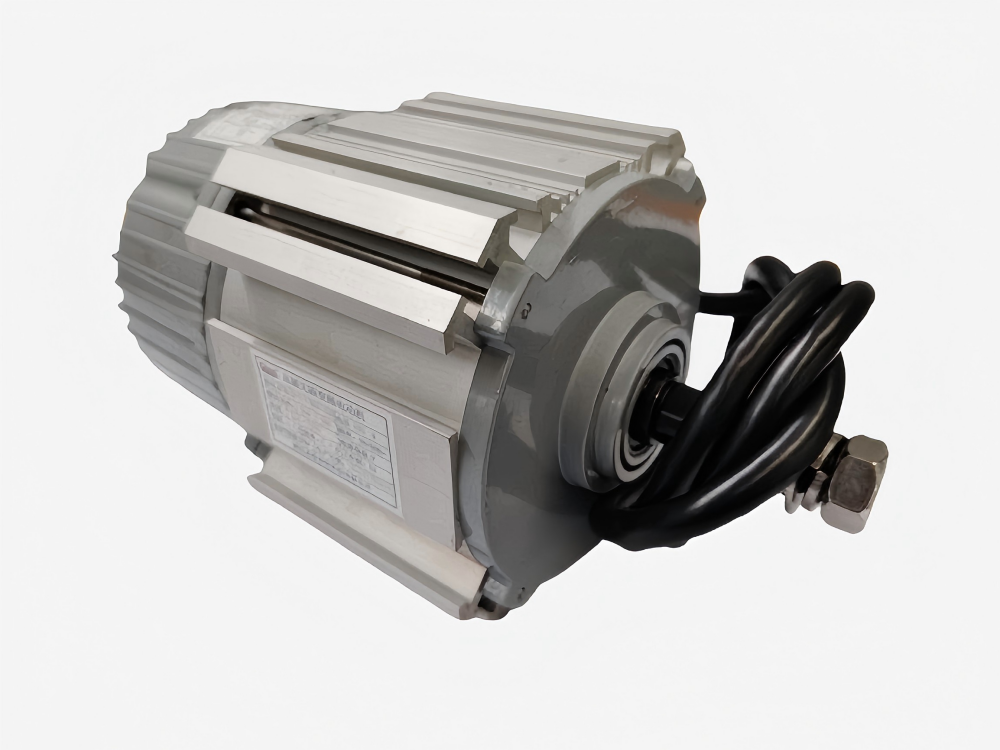

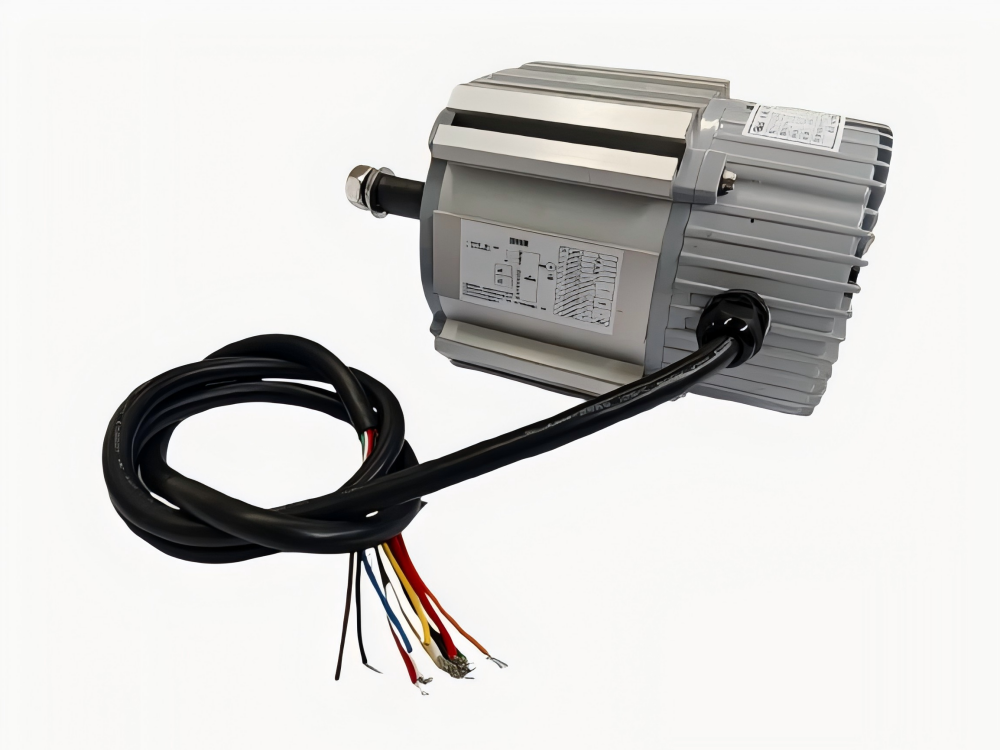

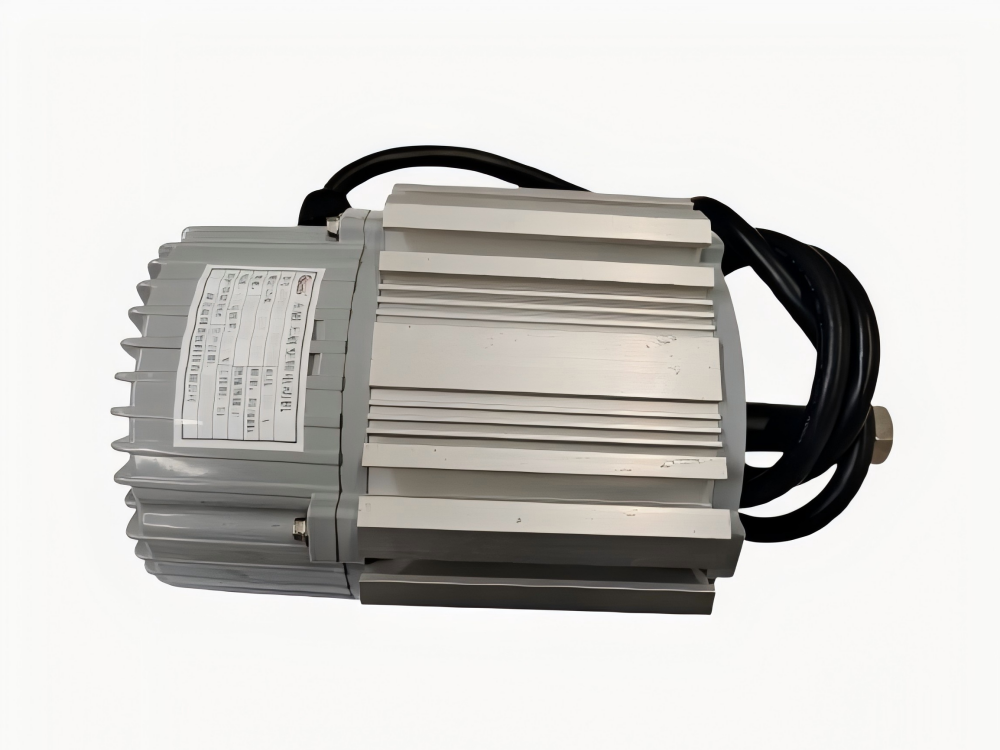

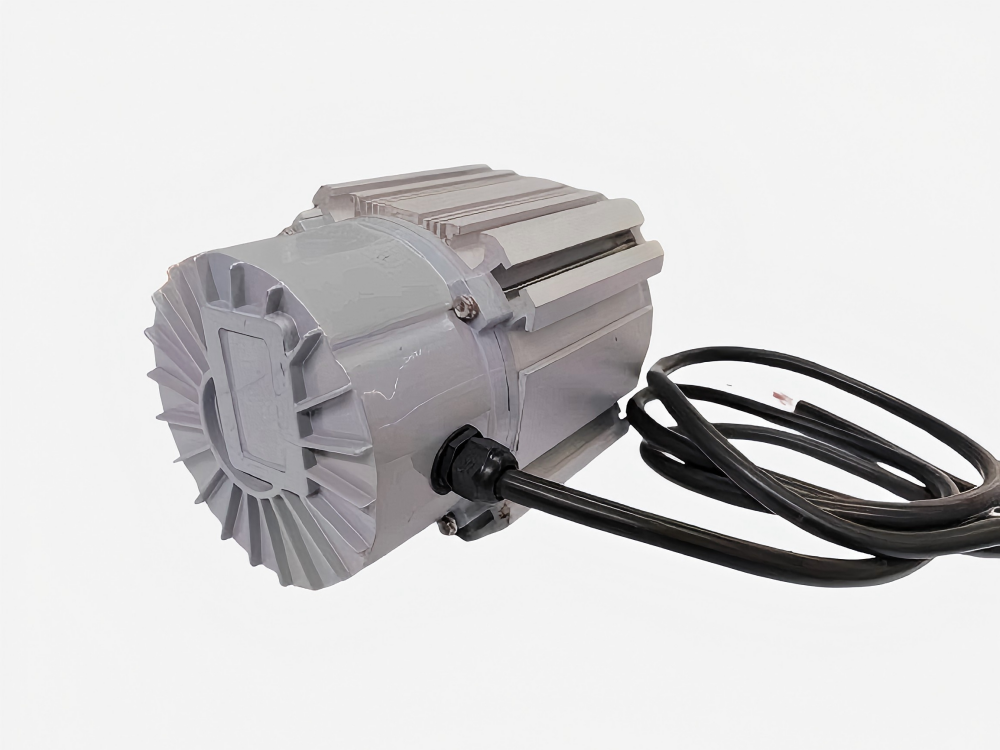

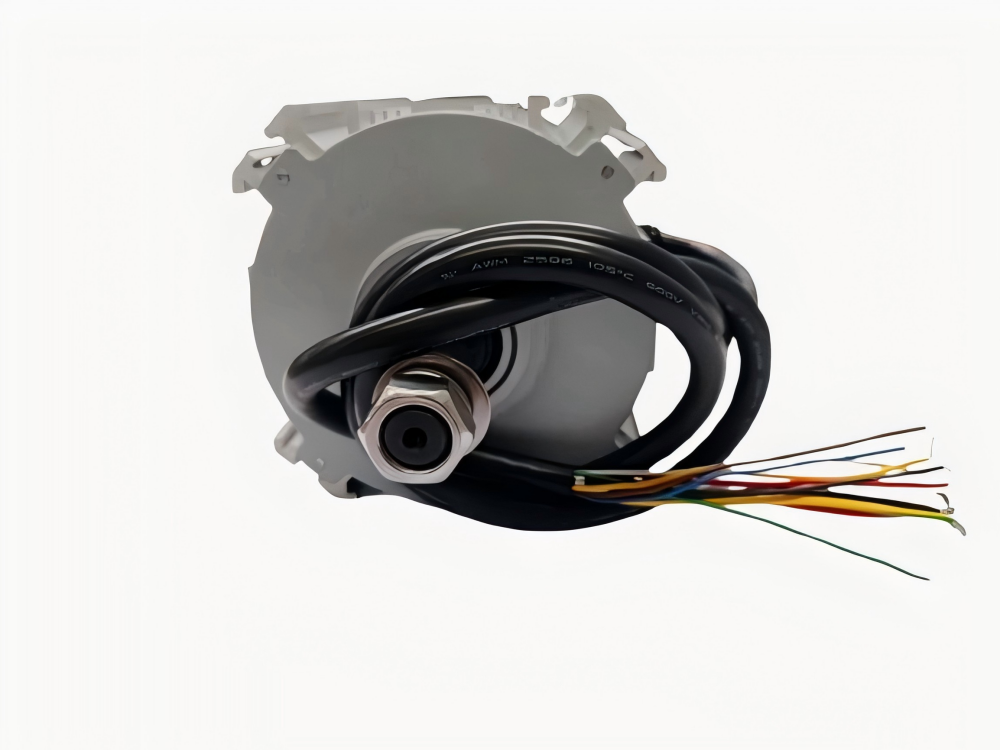

1500W ECM Motors Permanent Magnet Motor 220V/380V/460V Integrated with Driver

Introduction to the 1500W ECM Motor for Fan Applications

The 1500W Electronically Commutated Motor (ECM) represents the highest tier of performance and efficiency in industrial-grade air movement systems. Designed for heavy-duty applications requiring substantial airflow and pressure, this powerful motor combines intelligent control, exceptional reliability, and groundbreaking energy efficiency, making it the ultimate solution for large-scale ventilation where operational costs and performance are paramount.

Core Technology: ECM Fundamentals

An ECM is a sophisticated brushless DC motor incorporating an advanced onboard microprocessor for precise electronic commutation and dynamic speed control. This represents a revolutionary departure from conventional AC induction motors by functioning as a smart, demand-based system. It continuously self-adjusts its rotational speed and torque output to match exact real-time ventilation requirements, eliminating the massive energy waste typical of fixed-speed motors operating against system resistance.

Key Features and Benefits

1. Exceptional Energy Efficiency and Cost Savings:

• Sustained High Efficiency: Maintains outstanding efficiency levels (typically 85-92%) across entire operating range

• Substantial Energy Reduction: Achieves 60-70% energy savings compared to conventional motors

• Operational Economy: Dramatically lowers electricity consumption while providing excellent ROI

• Environmental Compliance: Supports strict carbon reduction targets and green building certifications

2. Advanced Intelligence and Control:

• Precise Demand-Based Operation: Integrated microprocessor enables exact speed matching to system requirements

• Constant Airflow/Pressure Maintenance: Automatically compensates for system changes like filter loading or damper adjustments

• Soft Start/Stop Capability: Eliminates high inrush current (typically <2x running current vs 6-8x for induction motors)

• Smart System Integration: Compatible with building automation systems through multiple protocol support

3. Superior Reliability and Performance:

• Industrial-Grade Construction: Designed for 24/7 operation in demanding environments

• Advanced Thermal Protection: Built-in temperature monitoring and overload protection

• Low Noise Operation: Significant acoustic noise reduction through optimized speed control

• Minimal Maintenance: Brushless design with sealed bearings ensures long service life

Technical Specifications

• Rated Power: 1500 Watts (2 HP equivalent)

• Motor Type: Brushless DC with permanent magnet technology

• Control System: Integrated microprocessor-based variable frequency drive

• Input Voltage: 380-480V AC, 50/60Hz (Three Phase)

• Control Interfaces:

  • 0-10V DC analog control

  • 4-20mA current loop

  • PWM signal

  • Modbus RTU/BACnet MS/TP protocols

• Efficiency Class: IE4/IE5 premium efficiency

• Protection Rating: IP55 standard (dust protected and water jet resistant)

Application Scope

This high-capacity motor is engineered for demanding industrial applications:

• Large Industrial Ventilation Systems

• High-Capacity Air Handling Units (AHUs)

• Industrial Process Cooling Fans

• Data Center Cooling Systems

• Large Warehouse Ventilation

• Manufacturing Facility Air Management

• Smoke Extraction Systems

• Large Commercial Building Pressurization

Summary: The 1500W ECM motor stands as the pinnacle of intelligent motor technology for industrial ventilation applications. It delivers unprecedented energy savings, precise environmental control, and exceptional reliability while significantly reducing total cost of ownership. Its advanced connectivity features make it ideal for modern smart building applications, providing both immediate energy savings and long-term operational benefits that justify the investment in premium motor technology.

Outline Dimension:(mm)
