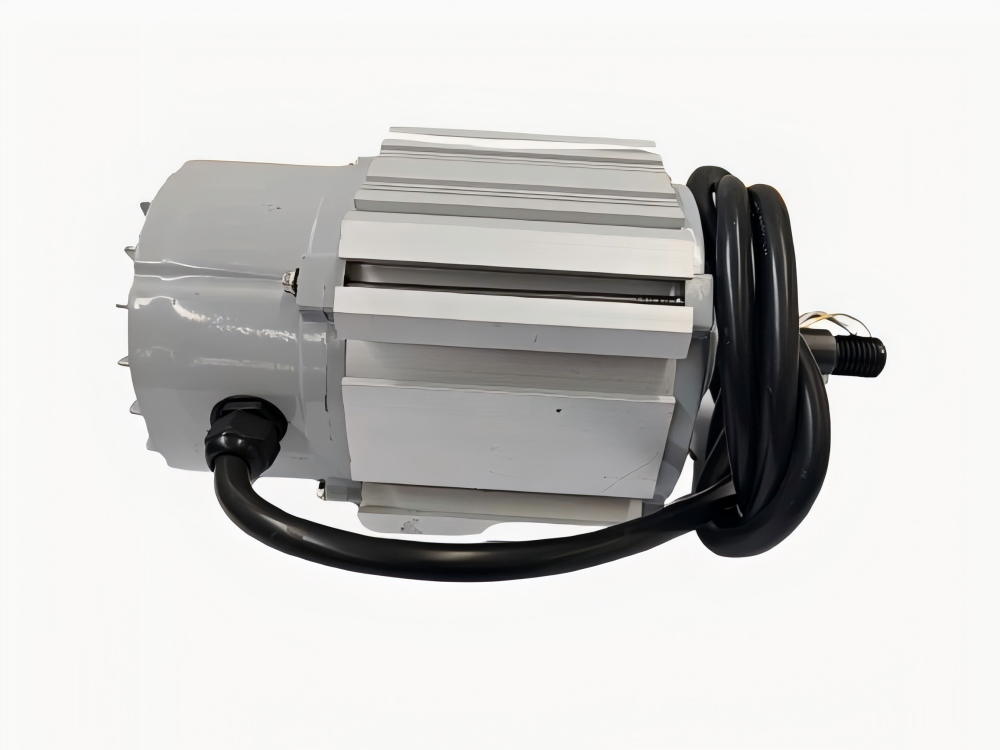

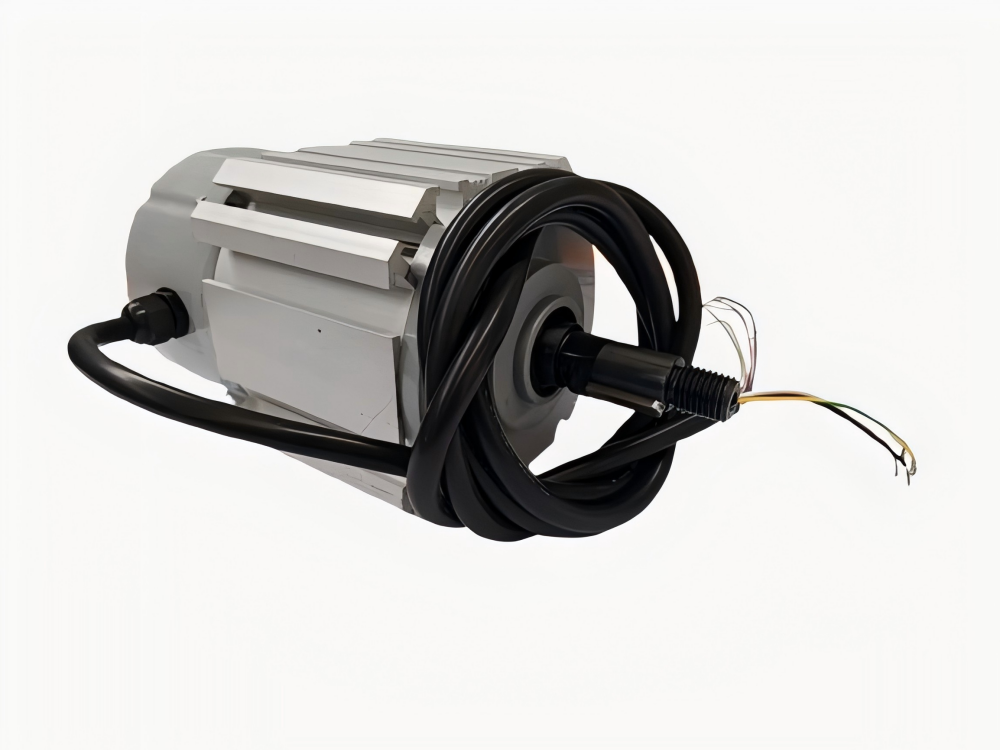

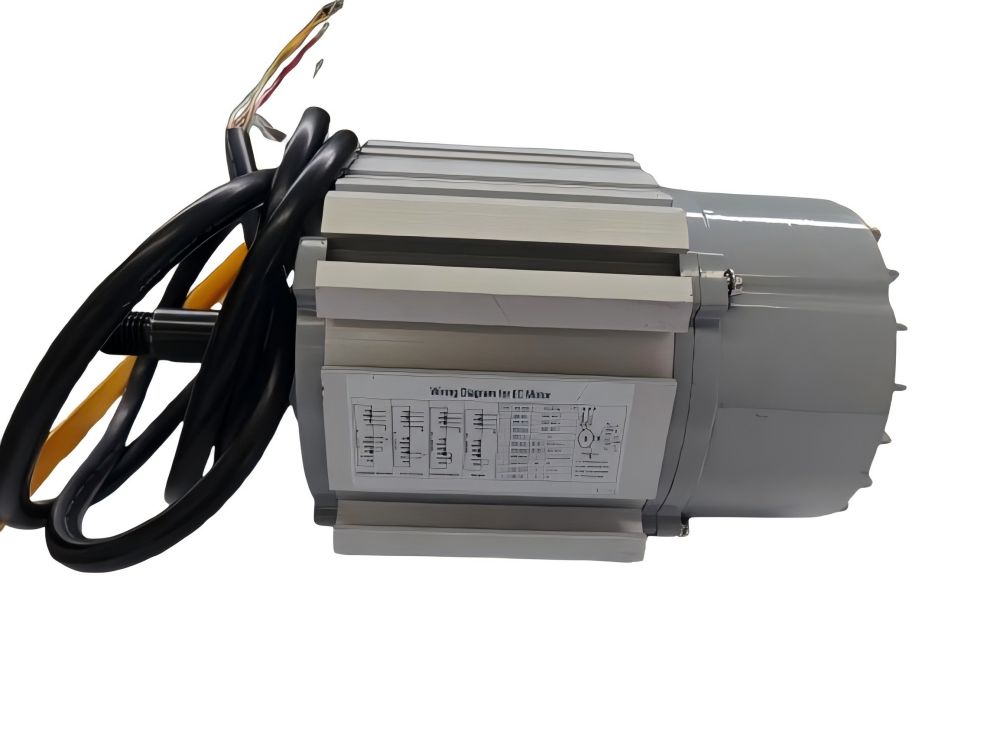

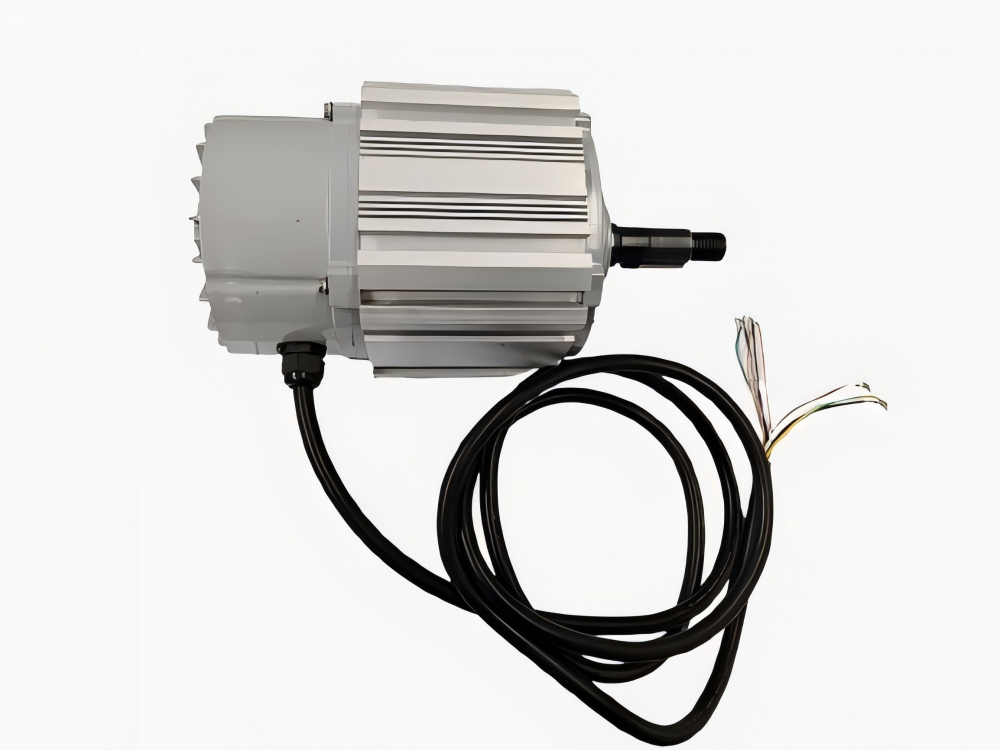

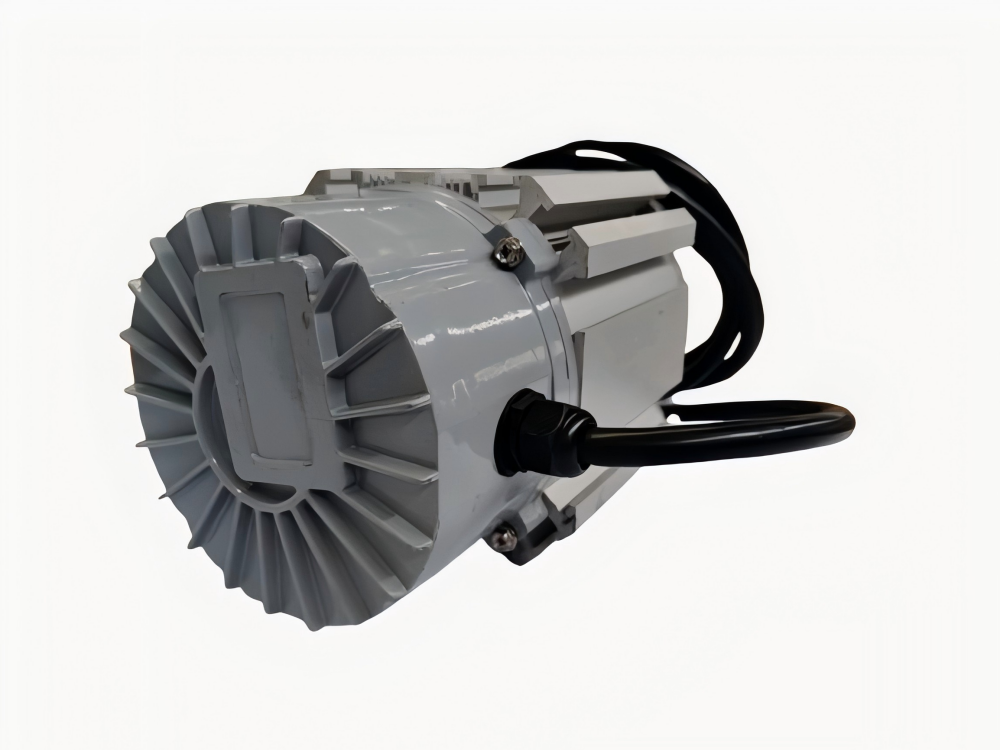

550W ECM Motors Permanent Magnet Motor 220V/380V/460V Integrated with Driver

Introduction to the Gongfu 550W ECM Motor for Fan Applications

The 550W Electronically Commutated Motor (ECM) is a high-performance, brushless motor designed specifically for demanding air movement applications. It represents the pinnacle of efficiency, intelligent control, and reliability in the commercial and industrial fan sector, where significant energy savings and precise performance are critical.

Core Technology: ECM Fundamentals

An ECM is a type of brushless DC motor that utilizes an integrated microprocessor for commutation and control. This advanced technology fundamentally differs from traditional AC induction motors (like PSC motors) by operating as a variable-speed system. It dynamically adjusts its speed and torque to match the exact demand of the ventilation system, rather than running inefficiently at a constant speed.

Key Features and Benefits of a 550W ECM Motor

1. Superior Energy Efficiency and Operational Cost Reduction:

• High-Efficiency Operation: ECM motors maintain exceptionally high efficiency levels (often 75-85% or higher) across a very wide range of operating speeds and loads. This is a drastic improvement over induction motors, whose efficiency drops significantly under partial loads or when throttled.

• Substantial Energy Savings: By precisely modulating its power output to deliver only the required airflow, a 550W ECM can reduce energy consumption by up to 50-70% compared to a standard 550W constant-speed AC motor operating against system resistance (e.g., dampers, filters). This results in dramatically lower electricity bills and a strong return on investment (ROI).

• Sustainability: The reduced power consumption directly lowers the operational carbon footprint, supporting green building initiatives and sustainability goals.

2. Intelligent Performance and Advanced Control:

• Demand-Based Speed Control: The onboard microprocessor allows for precise variable speed control. The motor intelligently responds to control signals based on real-time parameters like temperature, pressure, or occupancy, ensuring optimal performance at all times.

• Constant Airflow/Pressure Capability: A hallmark feature of ECM technology is its ability to automatically self-adjust to maintain a preset constant airflow (CFM) or constant static pressure, even as external conditions change (e.g., filter loading, damper position). This guarantees consistent ventilation performance and comfort.

• Soft Start/Stop: The motor ramps up and down gradually, eliminating the high inrush current typical of AC motors. This feature reduces stress on electrical components and mechanical drive systems, leading to enhanced longevity for the entire fan assembly.

3. Enhanced Reliability and Quiet Operation:

• Robust Design: With no brushes to wear out and sealed bearings, ECM motors are built for reliability and long service life in continuous duty applications.

• Reduced Acoustic Noise: The ability to operate at the lowest necessary speed significantly reduces audible noise, a major benefit for applications in occupied spaces like offices, restaurants, and hospitals.

Technical Specifications (Typical for a 550W ECM Fan Motor)

• Rated Output Power: 550 Watts

• Motor Type: Brushless, Electronically Commutated (Permanent Magnet)

• Control: Integrated Microprocessor-based Variable Speed Drive

• Input Power: Typically 100-240V AC, 50/60Hz (Single Phase)

• Control Interface: Standard options include 0-10V DC analog control, PWM signal, Potentiometer, or digital communication protocols (e.g., Modbus).

• Efficiency: High efficiency across the entire operating range.

Ideal Applications for a 550W Rating

This higher power rating makes the motor ideal for medium-to-large commercial and industrial fan applications, including:

• Large Energy Recovery Ventilators (ERVs) and Heat Recovery Ventilators (HRVs)

• Commercial HVAC Air Handlers and Rooftop Units (RTUs)

• Industrial Exhaust and Supply Fans

• Ducted Ventilation Systems in large buildings

• Fan Coil Units in larger zones

In summary, the 550W ECM motor is the intelligent and efficient heart of modern commercial ventilation systems. It is engineered to minimize energy consumption and operating costs while delivering unparalleled performance, reliability, and control precision. Investing in this technology offers a compelling financial return through energy savings and contributes to a more sustainable operational model.

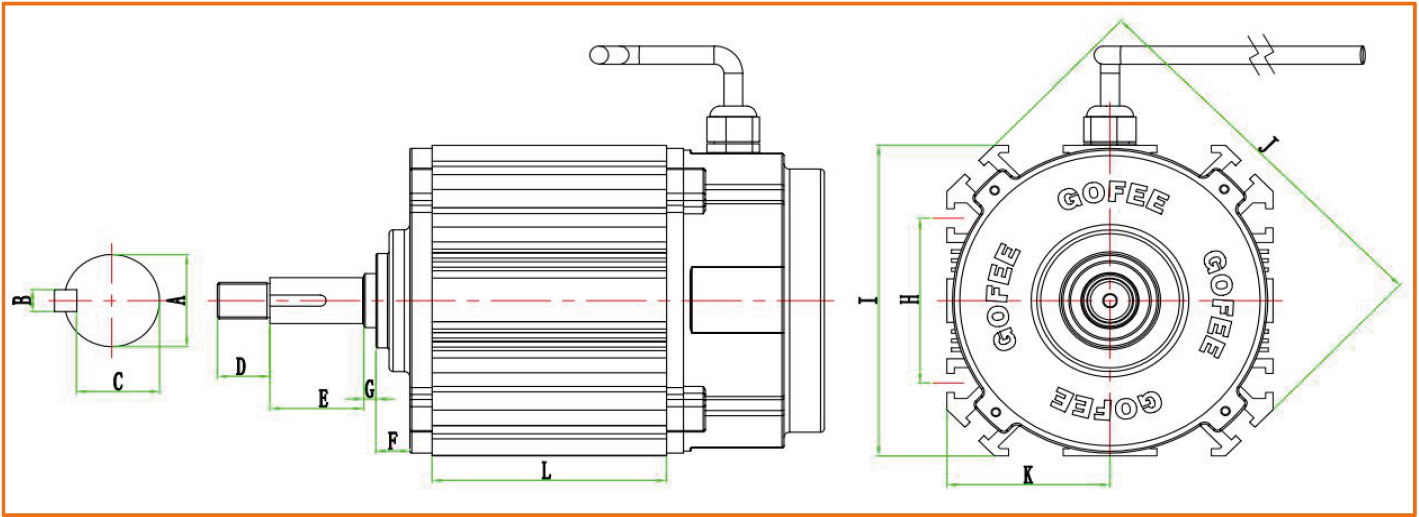

Outline Dimension:(mm)
