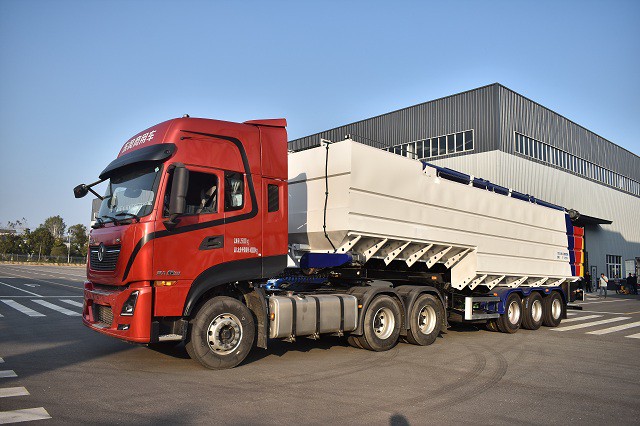

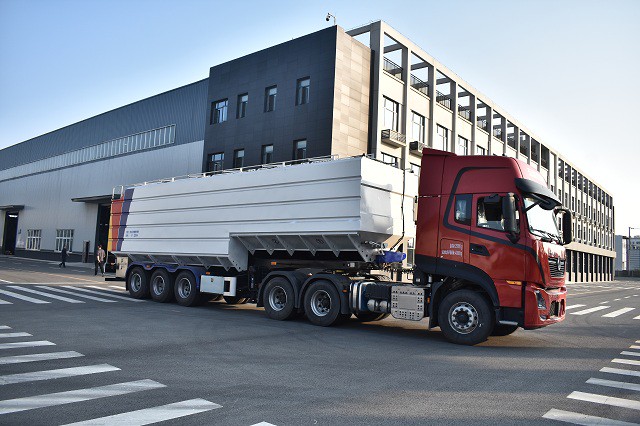

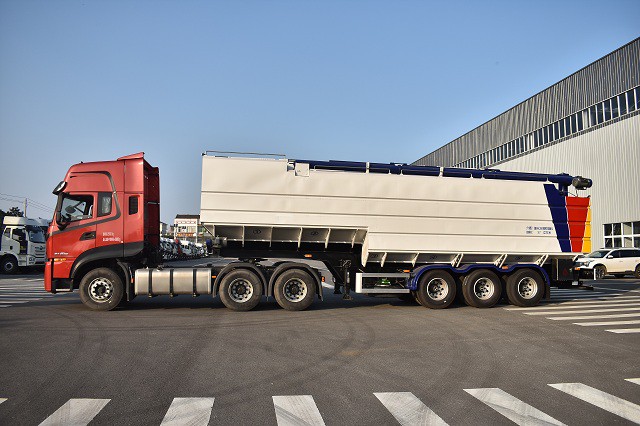

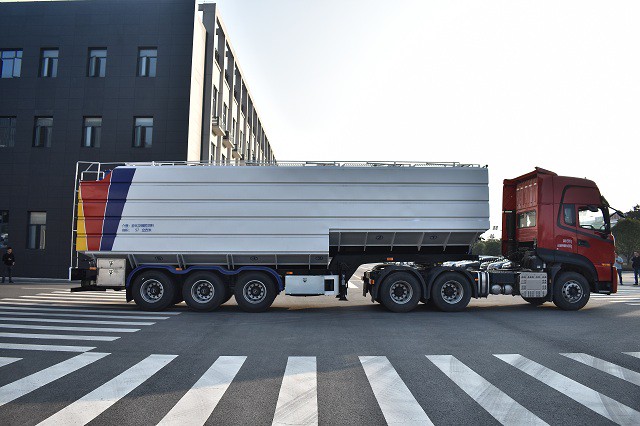

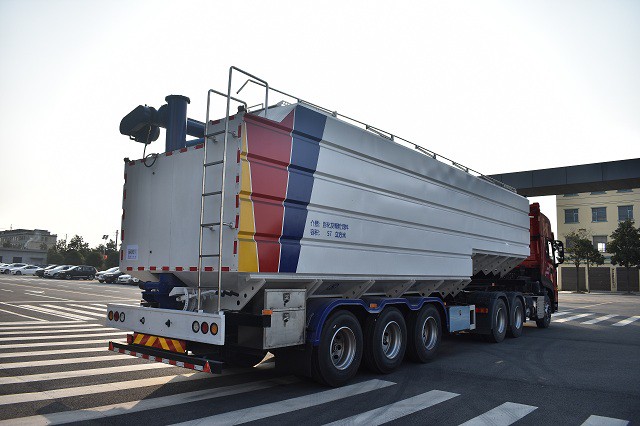

The introduction for Gongfu Brand Electric Semi-Trailer for Poultry Animal Bulk Feed Transport
- High Capacity & Efficiency
- •61.7 m³ tank volume and 29,390 kg rated load capacity enable large-scale feed transport, reducing delivery frequency and operational costs.
- •Rapid discharge rates:
- Electric-Driven Eco-Friendly Operation
- •Powered by external 380V electricity, eliminating fuel consumption and reducing carbon emissions.
- •Low operating costs with minimal energy expenses and reduced vehicle wear.
- •Zero on-site emissions, making it suitable for environmentally sensitive areas (e.g., livestock farms).
- Precision Engineering with Minimal Waste
- •Ultra-low residual rate (≤0.02%) ensures near-complete discharge, reducing feed waste and cross-contamination.
- •Low breakage rate (≤5%) preserves feed integrity and nutritional value.
- Enhanced Flexibility & Maneuverability
- •Horizontal conveying distance of 8 meters (customizable) and ±180° screw rotation allow adaptable unloading in confined spaces.
- •Maximum conveying height of 8.5 meters enables direct delivery into elevated silos.
- •Compact turning radius (11 meters) for improved navigation in tight farm environments.
- Robust Safety & Reliability
- •Siemens electric motor and Delixi control system ensure stable, high-performance operation.
- •Integrated electrical protections:
- •Phase-loss, under-voltage, and reverse-rotation prevention.
- •Auger alarm for operational safety.
- •Durable tridem axle design with 12R22.5 12PR tires and 24,000 kg axle load capacity for heavy-duty use.
- Cost-Effective Ownership
- •Lower maintenance costs due to electric drivetrain simplicity and reduced mechanical wear.
- •Compliance with road regulations (40,000 kg total mass) for seamless logistics.
Ideal for modern large-scale farms and eco-conscious operations, this trailer combines high capacity, electric sustainability, and operational precision to redefine bulk feed transport efficiency.
Hubei Gongfu Intelligent Equipment Co., Ltd.
Empowering Industry, Forging the Future
We extend a warm invitation to clients and partners worldwide to connect with us. At Gongfu Intelligent, we blend cutting-edge technology with unwavering reliability to deliver customized solutions that drive your success. Our expert team is dedicated to understanding your needs and providing innovative, efficient, and sustainable equipment tailored to your operations.
Whether you are seeking collaboration, technical support, or customized industrial solutions, we are here to assist. Reach out to us today to discover how our expertise can elevate your business.
Contact Us Now – Let’s build a brighter future together!
Product Brand：
Gongfu Brand
Product Name：
Electric Semi-Trailer for Bulk Feed Transport
Total Mass (kg)：
40,000
Tank Volume (m³)：
61.7
Rated Load Capacity (kg)：
29,390
Overall Dimensions (mm)：
11,600 × 2,550 × 3,995
Curb Weight (kg)：
10,610
Cargo Box Dimensions (mm)：
-
Approach/Departure Angle (°)：
- / 12
Front/Rear Overhang (mm)：
- / 2,220
Leaf Spring Number of Blades：
- / 10/10/10
Axle Load (kg)：
- / 24,000 (Tridem Axle Group)
Number of Axles：
3
Wheelbase (mm)：
5,380 + 1,310 + 1,310
Number of Tires：
12
Tire Specification：
12R22.5 12PR
Front Track (mm)：
-
Rear Track (mm)：
1,840 / 1,840 / 1,840
Minimum Turning Radius (m)：
11
Maximum Speed (km/h)：
-
Horizontal Conveying Distance (m)：
8 (Customizable)
Maximum Conveying Height (m)：
8.5
Maximum Discharge Elevation Angle：
<60°
Discharge Screw Rotation Angle：
±180°
Powder Discharge Rate (kg/min)：
400-600
Pellet Discharge Rate (kg/min)：
600-800
Residual Rate (%)：
≤0.02
Breakage Rate (%)：
≤5
Additional Features：
External 380V power supply connection; low operating costs; environmentally friendly; minimal vehicle wear
Tank Activation System：
Siemens electronics; Delixi control system; phase-loss, under-voltage, and reverse rotation protection; equipped with auger alarm
