Automatic Pig Feeding Tool | Automated Feeding Line System for Pig Farm Breeding Equipment

I. Company Profile

Located in Suizhou, Hubei Province – the hometown of Emperor Yan Shennong, the ancient chime bell capital, and China’s special-purpose vehicle hub – Hubei Gongfu Equipment was founded in 2020 as a joint venture with a renowned Taiwanese enterprise specializing in automated animal husbandry equipment for over 40 years.

We are a modern, integrated enterprise integrating R&D, design, manufacturing, sales, installation and after-sales service. With strict management and rigorous quality control, we continuously optimize products and solutions, providing customized full-scenario automated breeding solutions for large-scale pig farms, covering feeding, environmental control, manure treatment, heating, cleaning, disinfection, power generation and more.

II. Core Product System

(I) Automated Feeding System

1. Feed Silos (FRP / Galvanized Steel)

• FRP Feed Silo

  • Material Features: Corrosion resistance, acid and alkali resistance, excellent heat insulation, high strength with light weight, insulation and lightning protection.

  • Craft: Integrated molding, smooth inner wall, no bridging or residue; hot-dip galvanized support with 304 stainless steel screws.

  • Advantages: Preserves feed freshness, prevents caking and mildew, service life up to 30 years.




• Galvanized Steel Feed Silo

  • Material: 275g/㎡ double-sided hot-dip galvanizing + overall hot galvanizing, outdoor service life 15–30 years.

  • Structure: Clay sealing + hydrophobic edge + flanged waterproofing; polished inner wall + cone bottom diverter for smooth discharge.

  • Functions: Fully enclosed to prevent rats and insects, transparent window for feed level monitoring, compatible with weighing systems.




2. Automatic Feeding Equipment

• FD-60 Quantitative Feeding System: Delivery distance 90m, capacity 700–800kg/h, for precise feeding of pregnant sows.

• FD-75 Ad Libitum Feeding System: Delivery distance 80m, capacity 1200–1500kg/h, for nursery and finishing pigs.

• FD-110 External Delivery System: Delivery distance 50m, capacity 3500–4500kg/h, for centralized off-site feeding.

• Cable Disk System Main Unit: 304 stainless steel casing, 1.5/2.2KW motor, cast steel main wheel, stable operation and low failure rate.

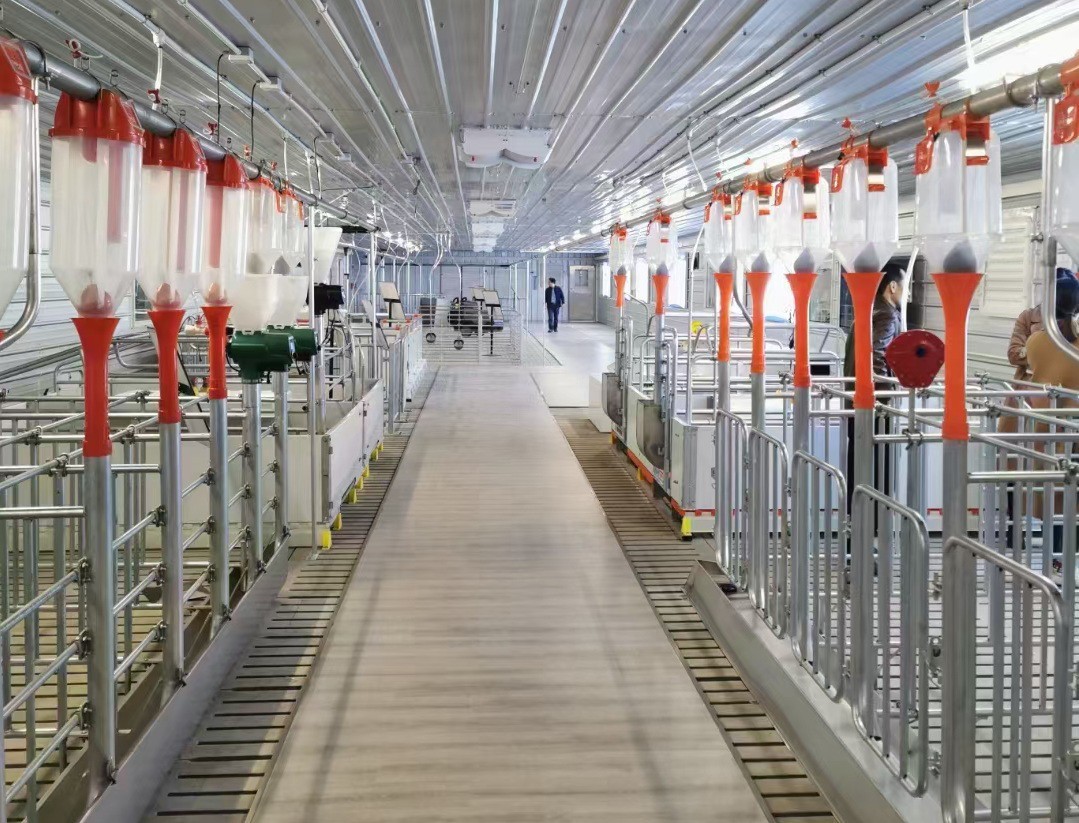

3. Quantitative Barrel & Intelligent Feeder

• Quantitative Barrel: Food-grade raw material, adjustable dosing, with medicine port and record clip, precise feed control.

• Intelligent Feeder: IP66 waterproof, arch-breaking discharge, wet-dry mixing, manual/auto modes for refined feeding.




(II) Environmental Control & Air Treatment System

1. Environmental Control Equipment (Fan + Cooling Pad + Louver)

• Aluminum Alloy Cooling Pad: 15cm thick Jiamusi pulp paper, 304 stainless steel anti-rat net, corrosion-resistant and uniform cooling.

• FRP Fan: SMC integrated molding, waterproof and anti-corrosion, large air volume, low noise, suitable for corrosive pig house environments.

• Automatic Louver: Negative pressure automatic opening/closing; minimal ventilation in winter to avoid cold drafts, tunnel ventilation in summer for strong cooling.

2. Air Filtration System

• Multi-stage Filtration: Primary filtration for large particles → medium/high-efficiency filtration for aerosols and pathogens, blocking airborne diseases.

• Mode: Negative pressure air intake + positive pressure fresh air, improving biosecurity.

3. Deodorization System

• Process: Biological filter tower + chemical scrubbing, PP porous filter balls, efficiently decomposes ammonia and hydrogen sulfide.

• Effect: Exhaust gas meets emission standards, no secondary pollution, compliant with environmental requirements.

(III) Heating & Drinking Equipment

1. Floor Heating System

• Advantages: Uniform floor heating, conforms to pig lying habits, prevents diarrhea in piglets, saves 20%–30% energy.

• Structure: Electric boiler + temperature control + heat storage pipeline, service life up to 50 years, maintenance-free.

2. Stainless Steel Drinking Bowl

• Water-saving, splash-proof, clean drinking water, suitable for all growth stages, improving animal welfare and drinking efficiency.

(IV) Manure Treatment & Cleaning-Disinfection

1. High-Temperature Aerobic Fermentation Tank

• Process: Livestock manure + strains fermented at high temperature, organic fertilizer raw material in 7–12 days.

• Advantages: Small footprint, fully automatic operation, low energy consumption (cost 20–40 yuan/ton), operable at low temperature, exhaust up to standard.

• Application: Manure recycling, compliant with circular agriculture and environmental policies.

2. Central High-Pressure Cleaning System

• Configuration: Imported plunger pump + variable frequency motor, PLC control, multi-point quick connectors.

• Functions: Automatic gun start/stop, variable frequency energy saving, switchable cleaning/disinfection, suitable for farm disinfection centers.

(V) Supporting & Backup Equipment

1. Intelligent Silo Weighing System

• Composition: High-precision sensors + junction box + display terminal + mobile APP/cloud platform.

• Functions: Real-time weighing, residue monitoring, remote viewing, anti-theft, precise feeding management.

2. Backup Generator Set

• Functions: Auto start/stop within 15s, ATS automatic mains switching, ensures uninterrupted power for breeding equipment.

• Configuration: IP52 protection, remote monitoring, lightning and insect proof, high safety redundancy.

3. Bulk Feed Truck

• Configuration: Imported hydraulic system, fully sealed tank, full welding, low breakage and residue rate.

• Advantages: Closed transportation, pollution-proof, high loading-unloading efficiency, for large-scale farm centralized feeding.

III. Core Advantages

1. Labor Saving & Efficiency Improving: Only 1 breeder for 300–500 pregnant sows; 10 workers saved for 10,000-head farm, annual labor cost reduced by about 720,000 yuan.

2. Feed Cost Reducing: Less leakage, rat damage and mildew; total saving over 30 yuan per ton of feed.

3. Production Stabilizing: Timed and quantitative feeding reduces stress, lowers abortion rate, shortens finishing period by 10–15 days.

4. Environmental Compliance: Deodorization, manure fermentation and air filtration meet biosecurity and emission standards.

5. Stable & Durable: Anti-corrosion core parts, low failure rate, lower full-life-cycle cost.

IV. Return on Investment (600 Sows / 10,000-head Farm)

• Gestation House: Annual income increase ≈ 100,000 yuan, payback period 2–3 years.

• Nursery House: Annual saving ≈ 70,000 yuan, payback period 1 year.

• Finishing House: Annual saving over 150,000 yuan, payback period about 1 year.

• Total Investment ≈ 600,000 yuan (truck feeding scheme), overall payback period 1.5–2.5 years.

V. Service & Projects

• Service: One-stop solution including design, manufacturing, installation, commissioning, training and after-sales maintenance.

• Projects: Served Nanping Lizhong Animal Husbandry, Hubei Gongfu Animal Husbandry, Suizhou 2,400-sow farm and other large-scale breeding projects.
