Discharge Feeder,Automated Feeding Systems

Automated Discharge Feeder

An Automated Discharge Feeder is a critical electromechanical device within modern livestock automated feeding systems. Its primary function is to receive, measure, and dispense a pre-programmed quantity of feed from the main conveyance line (auger or chain-disk system) into individual animal troughs or feeding stations with high precision and reliability.

It acts as the final, crucial "gatekeeper" between the bulk feed supply and the animal, ensuring accurate and timely delivery of nutrition.

Core Functions

1. 1.Precise Metering & Dispensing: Its most important job is to accurately measure a specific amount of feed as programmed by the control system. This ensures each animal or pen receives the exact ration required for its specific growth stage, health status, or production cycle (e.g., gestation vs. lactation for sows).
2. 2.Timed Release: It operates on a schedule or trigger from the central controller, delivering feed at optimal times throughout the day.
3. 3.Distribution Control: In complex systems, a single discharge feeder may be responsible for distributing feed to multiple troughs in sequence, ensuring all animals have access to fresh feed.

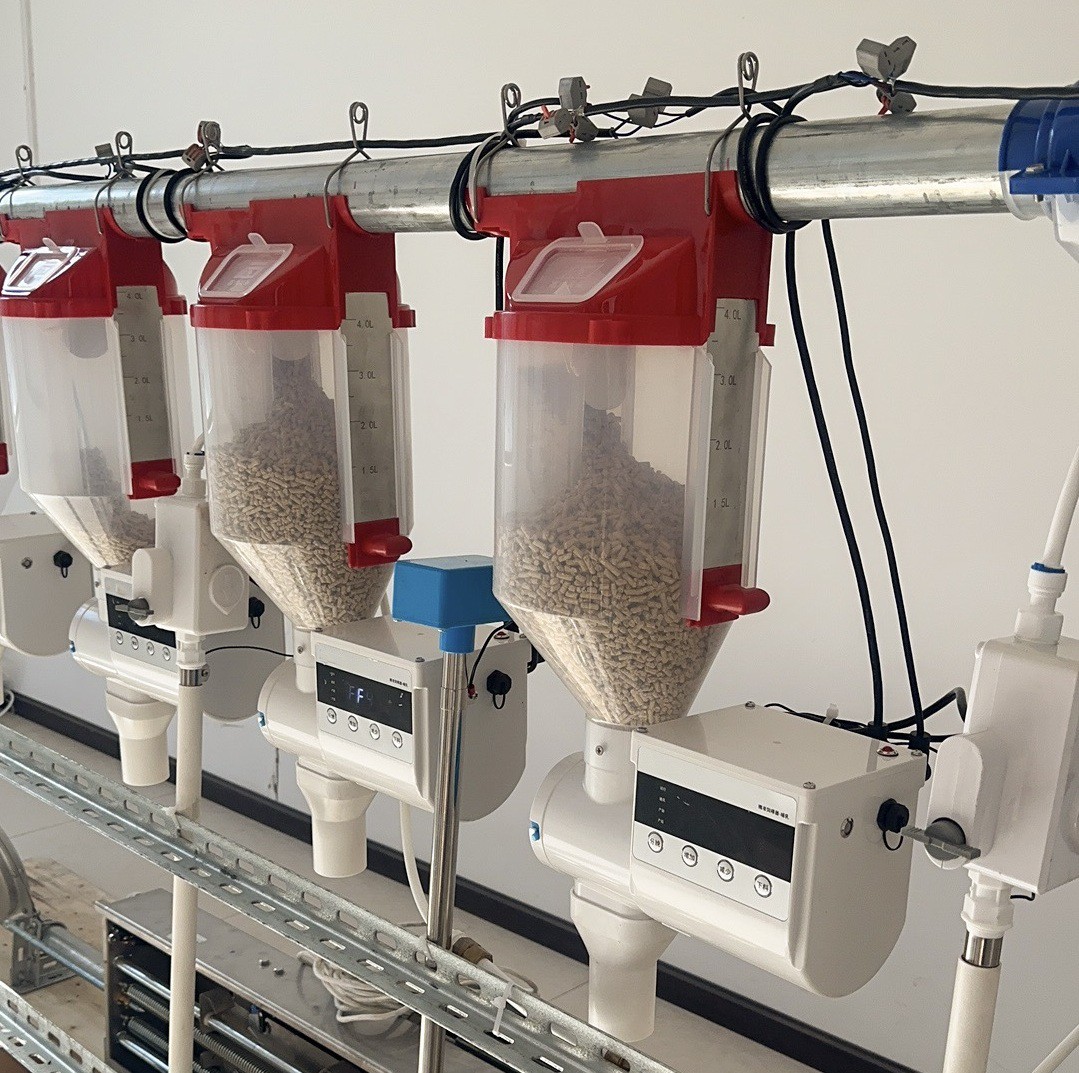

Key Components

A typical automated discharge feeder consists of:

• •Hopper / Receiving Chamber: A small holding chamber that receives feed from the main supply line.
• •Metering Mechanism: This is the heart of the device. Common types include:
  • •Rotary Auger: A small, slow-turning auger that pushes a precise volume of feed out of the hopper.
  • •Measuring Cup: A cup that fills, then rotates or tips to discharge its contents.
  • •Slide Gate/Flap: A electrically operated door that opens for a set duration to allow feed to gravity-flow out.
• •Electric Motor & Drive: Provides the power to operate the metering mechanism. Modern systems often use servo motors for extreme precision.
• •Control Unit & Sensors: An integrated circuit board that receives commands from the main farm computer/PLC. It often includes sensors to confirm that dispensing has occurred and to detect any blockages (jams).
• •Discharge Chute: A guide that directs the measured feed into the trough, minimizing spillage.

How It Works (Integration in the System)

1. 1.The main feed line runs through the barn, filled with feed from the central silo.
2. 2.The automated discharge feeder is mounted at a designated drop point above a feeding trough.
3. 3.The central control system sends a signal (e.g., "Dispense 500 grams to Feeder #12").
4. 4.The feeder's motor activates its metering mechanism (e.g., the auger rotates three times).
5. 5.The precisely measured feed is released through the chute into the trough below.
6. 6.A sensor may send a confirmation signal back to the controller, completing the loop.

Key Advantages

• •Unmatched Precision: Enables precision feeding, allowing farmers to tailor the diet to the exact needs of individual animals or groups, optimizing feed conversion ratio (FCR) and reducing waste.
• •Labor Savings: Completely eliminates the need for manual feeding.
• •Improved Animal Health & Welfare: Provides consistent, on-time meals, reducing animal stress and competition for food. It also allows for special dietary regimens for sick or underweight animals.
• •Data Collection: Provides valuable data on feed consumption patterns per pen or individual, enabling better farm management decisions.
• •Flexibility: Ration sizes and schedules can be easily adjusted via software to respond to changing animal requirements.

In summary, the Automated Discharge Feeder is far more than a simple valve; it is a precision instrument that is fundamental to modern, data-driven livestock farming. It transforms a bulk delivery system into a targeted nutritional management tool, directly contributing to operational efficiency, cost savings, and enhanced animal welfare.
