Exhaust Fans, Ventilation Fans,Automated Feeding Systems

An automated feeding system is a technologically advanced solution designed to deliver precise amounts of feed to livestock automatically. It is a core component of modern, large-scale pig farms, aiming to enhance efficiency, reduce labor costs, and optimize animal growth and health.

A typical system consists of several key components:

1. 1.Feed Storage Bin/Silo: The starting point of the system, these large tanks store bulk feed, protecting it from moisture and contaminants.
2. 2.Conveyance System: This is the "pipeline" that moves feed from the silo to the barns. The two most common types are:
   • •Chain-Disk (or Chain-Veyor) System: A motor drives a chain with plastic disks inside a tube. These disks gently pull the feed through the pipe over long distances with minimal feed damage.
   • •Spiral Auger System: A rotating spiral auger inside a tube pushes feed forward. It's well-suited for shorter distances but can cause more feed abrasion compared to chain-disk systems.
3. 3.Distribution Devices: At various points in the pipeline, mechanisms like drop valves, measuring cups, or distributors ensure feed is accurately delivered to the correct pen or trough.
4. 4.Control System: The brain of the operation. Using a computer or Programmable Logic Controller (PLC), operators can set feeding schedules, portion sizes for different animal groups (e.g., sows, growers), and monitor the system's performance.

Key Advantages:

• •Labor Savings: Drastically reduces the manual work required for daily feeding.
• •Precision Nutrition: Allows for precise control over feed quantity and timing, matching the specific nutritional needs of different animal groups to improve Feed Conversion Ratio (FCR).
• •Improved Animal Health & Welfare: Reduces stress from human intervention and ensures fresh feed is available, promoting consistent growth.
• •Reduced Feed Waste: Enclosed systems minimize spillage and contamination, leading to significant cost savings.
• •Data-Driven Management: Provides valuable data on feed consumption patterns, aiding in better farm management decisions.

In summary, automated feeding systems are integral to efficient, productive, and sustainable pig production, enabling farmers to manage larger operations effectively while maintaining high standards of animal care.

Ventilation Fans in Modern Livestock Farms

Ventilation fans are absolutely critical components of environmental control systems in modern barns for pigs, poultry, and other livestock. They are not just simple fans; they are precisely engineered machines designed to manage temperature, humidity, and air quality to ensure animal health, welfare, and productivity.

Core Functions & Importance

The primary purposes of ventilation fans in a farm are:

1. 1.

   Temperature Control: To remove excess heat generated by the animals themselves, especially in densely stocked barns, preventing heat stress.

2. 2.

   Humidity Control: To exhaust moist air from animal respiration, manure, and water systems, reducing condensation and the risk of respiratory diseases.

3. 3.

   Air Quality Management: To remove harmful gases (ammonia, carbon dioxide, hydrogen sulfide), dust, and pathogens, bringing in fresh, oxygen-rich air.

4. 4.

   Air Speed Management (Tunnel Ventilation): In hot weather, fans run at high speed to create a "wind chill" effect down the length of the barn, helping animals feel cooler.

Key Components and Features

Modern farm fans are built for durability, efficiency, and precise control:

• •

  Housing & Shutters: The housing is typically made from corrosion-resistant materials like galvanized steel or aluminum. Shutters automatically open when the fan is on and close when it's off to prevent backdrafts and heat loss.

• •

  Blades/Impeller: Engineered for high efficiency and airflow (measured in Cubic Feet per Minute - CFM). blades are often made from non-corrosive materials like composite plastics or coated metals.

• •

  Motor: Specially designed for continuous, reliable operation in harsh, dusty, and humid environments. Many are energy-efficient EC (Electronically Commutated) motors that allow for variable speed control.

• •

  Safety Guards: Protect both the animals and the fan from damage.

Common Types of Fans Used

Different fans are used for different purposes within a ventilation system:

• •

  Box Fans / Circulation Fans: Smaller fans installed inside the barn to mix air, prevent stratification (hot air rising to the ceiling), and eliminate dead air pockets.

• •

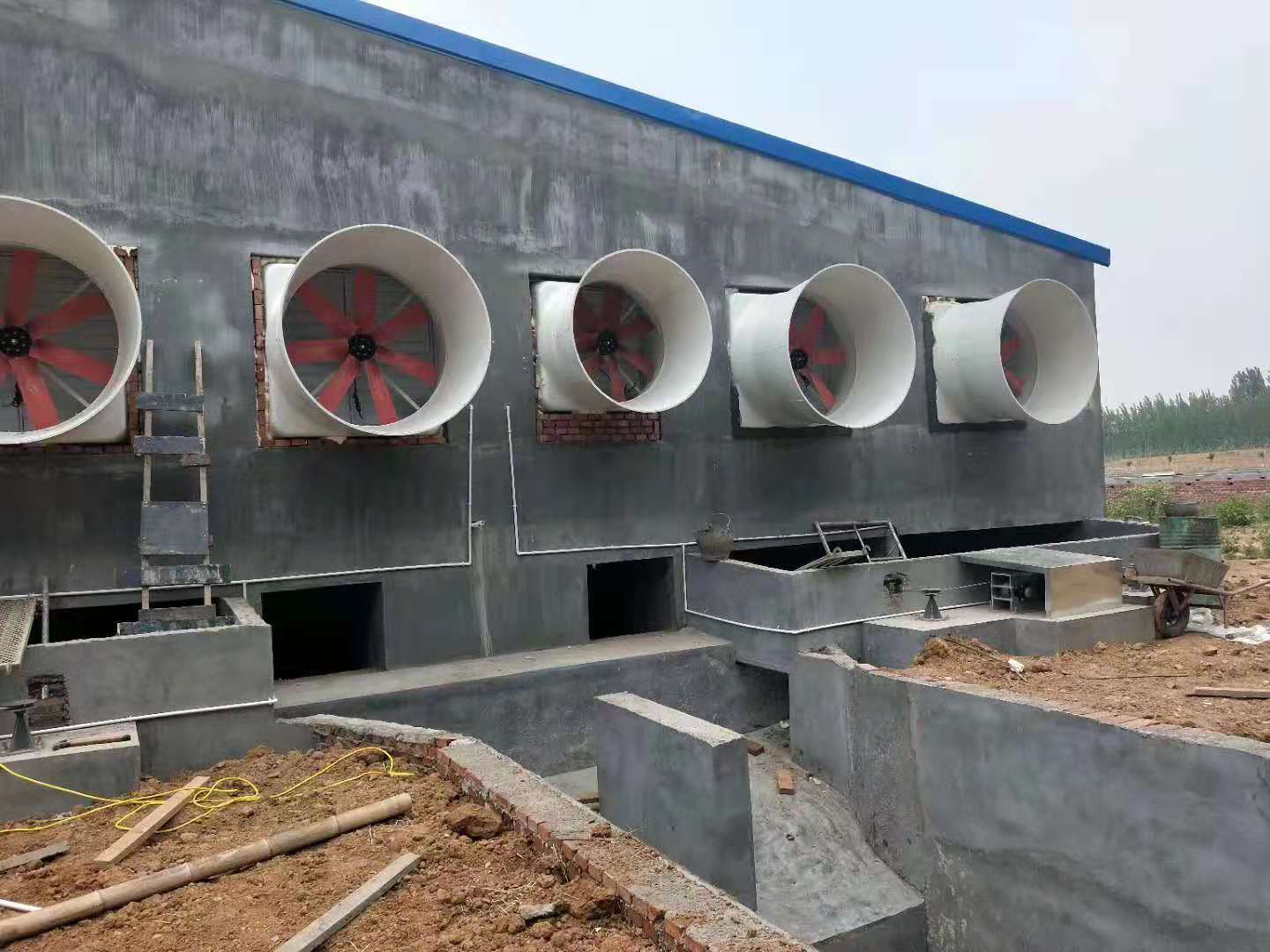

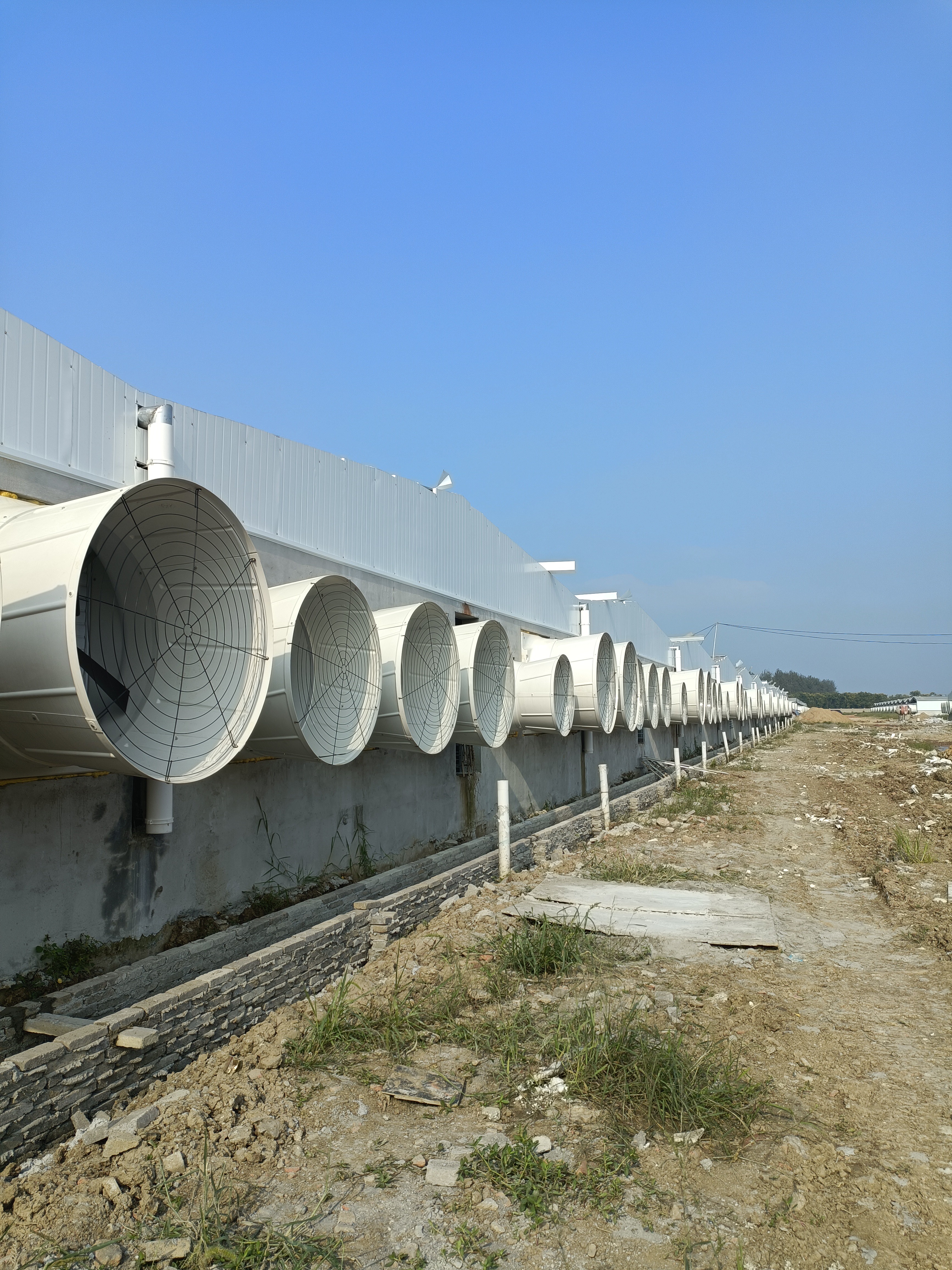

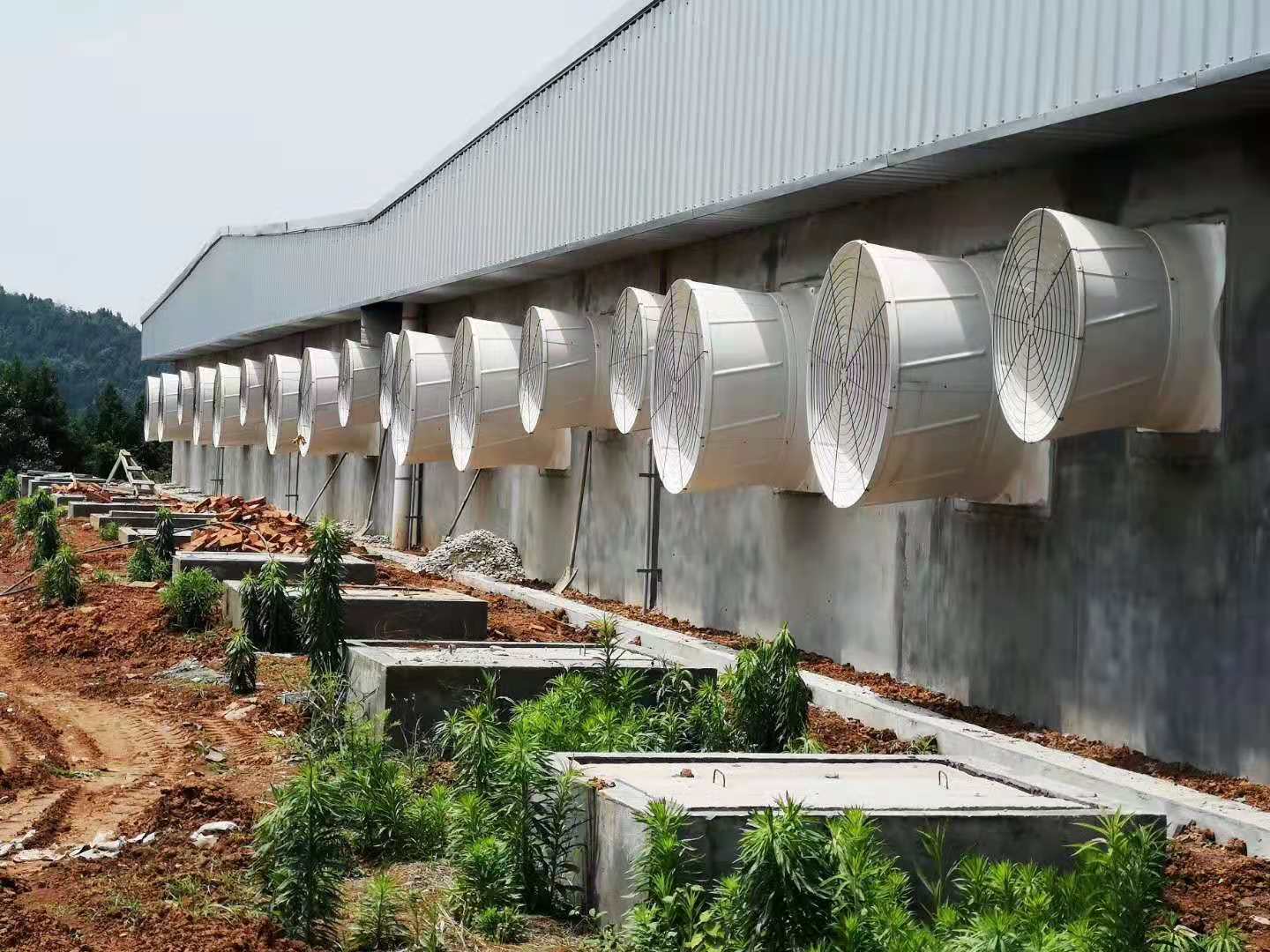

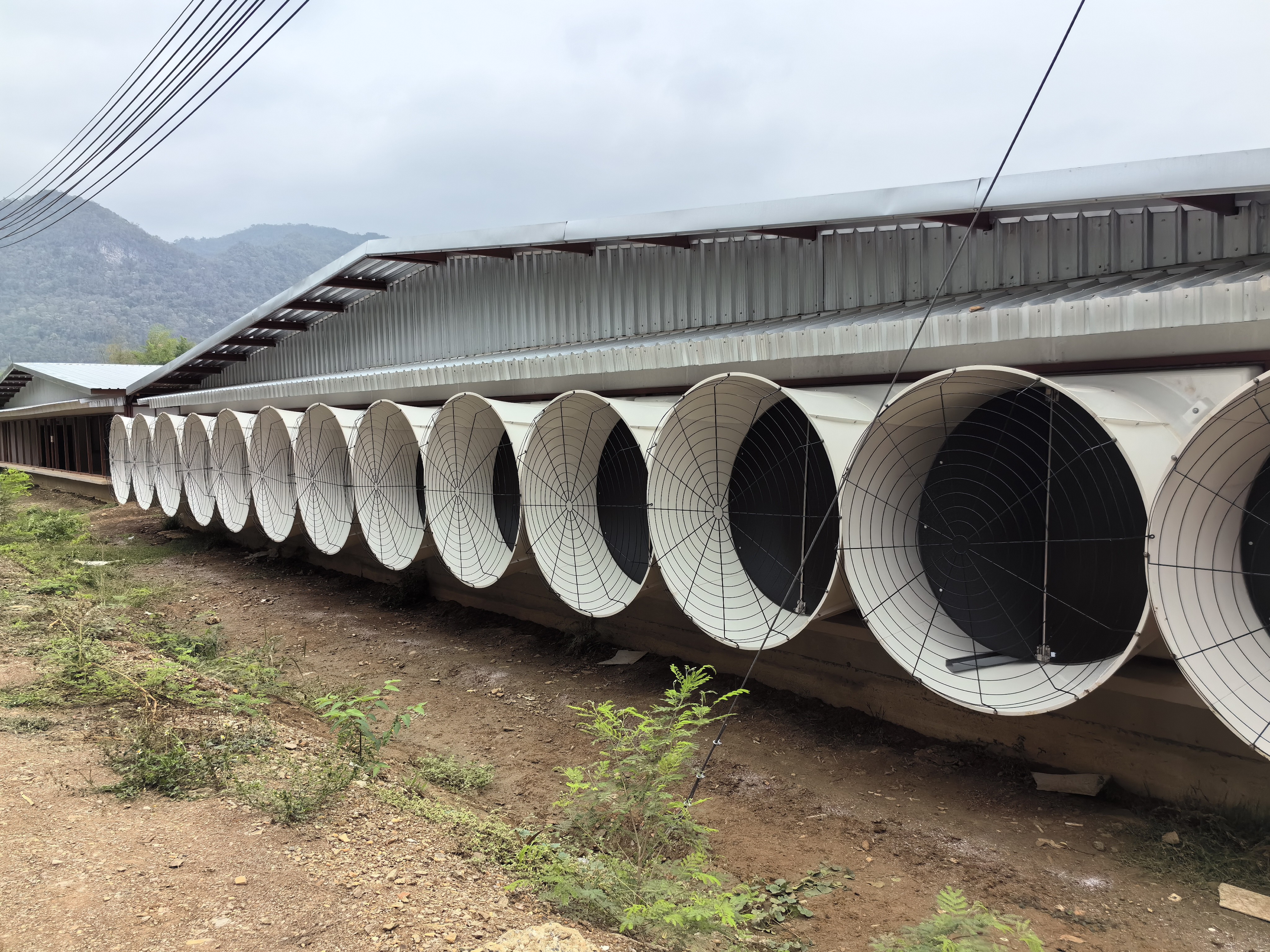

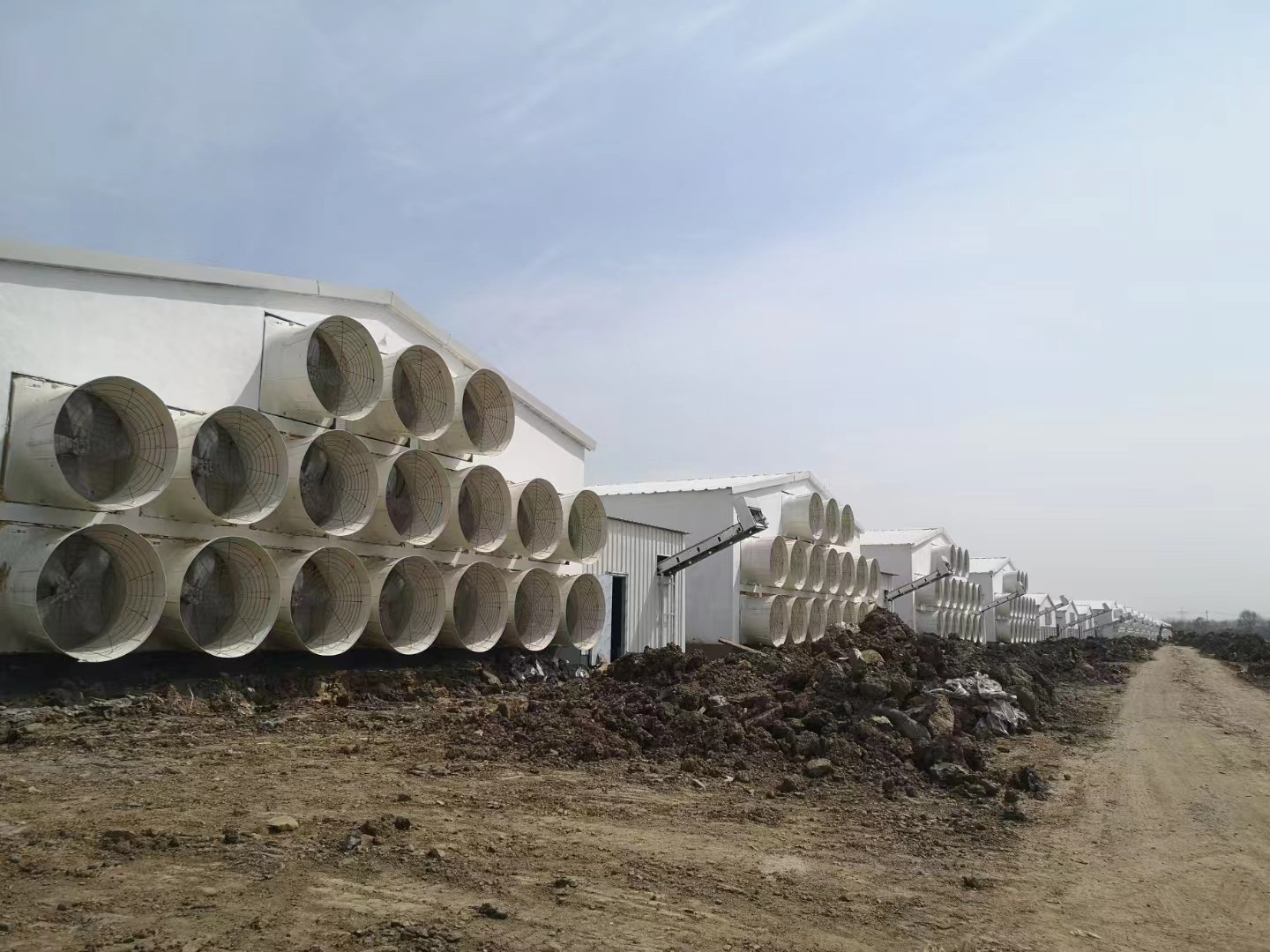

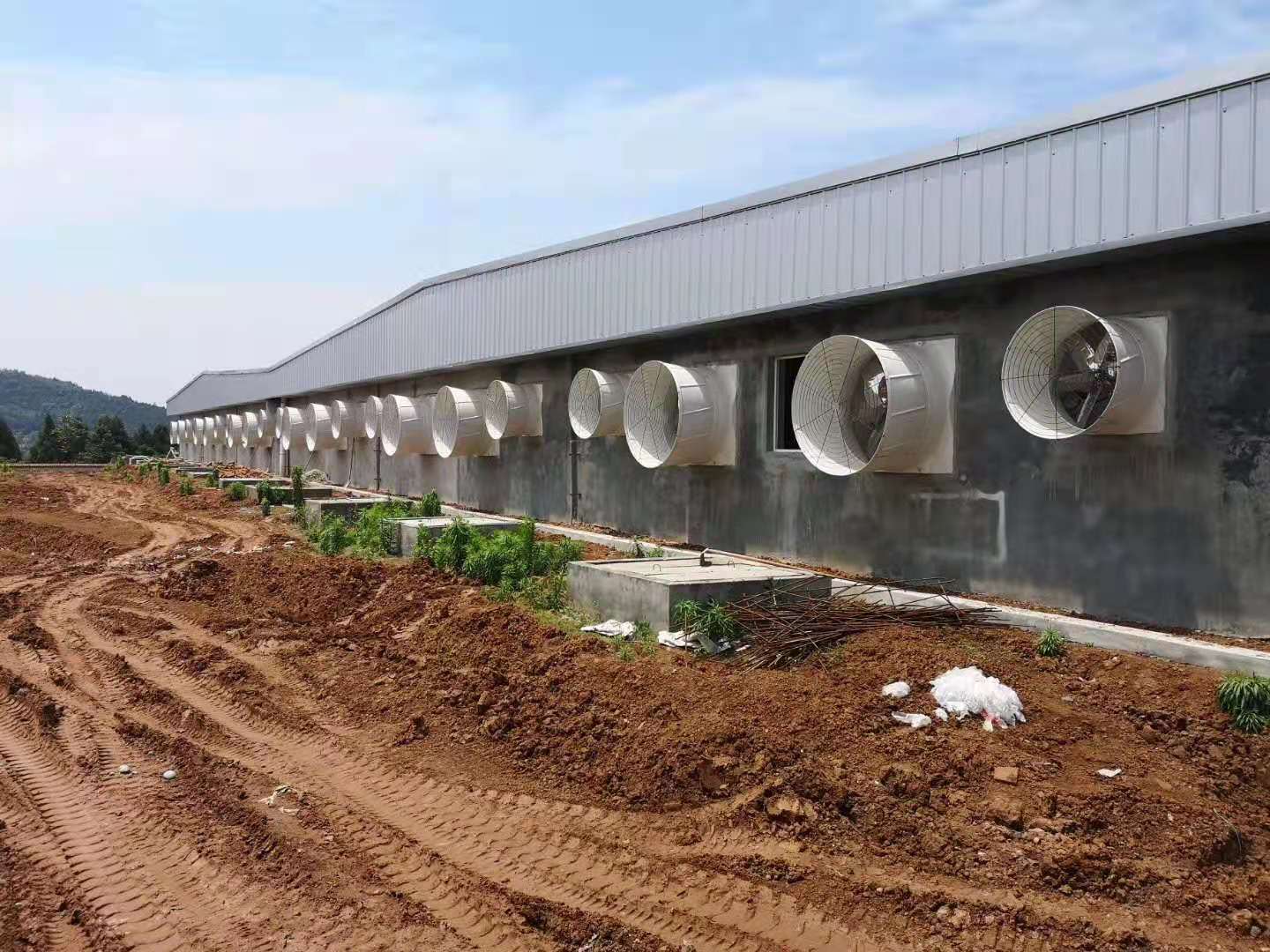

  Exhaust Fans (the most common type): Installed in the sidewalls or endwalls of a barn. They are the primary workhorses that create negative pressure, pulling fresh air into the barn through inlets.

• •

  Tunnel Fans: Large-capacity exhaust fans installed at one end of a barn to create a high-velocity longitudinal airflow for cooling during hot weather.

• •

  Ceiling Fans: Used primarily for air mixing and destratification in larger, open barns.

Integration and Control

Fans are rarely operated alone. They are integrated into a sophisticated system:

• •

  Staged Operation: Fans are grouped into "stages" based on their capacity. A controller (thermostat or computer) activates additional stages of fans as the temperature inside the barn rises.

• •

  Variable Speed: Many modern systems use variable speed fans that can smoothly adjust their output to precisely match the ventilation requirements, saving significant energy.

• •

  System Integration: Fans work in concert with air inlets, cooling pads (evaporative cooling), and sometimes heating systems to maintain a perfectly balanced environment year-round.

Advantages of a Well-Designed Fan System

• •

  Promotes Animal Health & Welfare: Reduces disease pressure and stress.

• •

  Improves Productivity: Optimized environments lead to better feed conversion, growth rates, and reproductive performance.

• •

  Protects Farm Infrastructure: By controlling humidity, it reduces corrosion and deterioration of the building.

• •

  Energy Efficiency: Modern, well-maintained fans with smart controllers use energy much more effectively than older systems.

In summary, ventilation fans are the "lungs" of a modern livestock facility. They are essential engineering assets that continuously refresh the barn's atmosphere, creating the optimal conditions necessary for successful and sustainable animal production.
