FRP Galvanized Feed Silo with Feeding Tool Anti-Corrosion Feed Storage Equipment

I. Company Overview

Founded in 2020 and located in Suizhou, Hubei Province, Hubei Gongfu Inteligent is a joint venture with a renowned Taiwanese enterprise boasting over 40 years of experience in automated animal feeding equipment. We are a comprehensive enterprise integrating R&D, design, manufacturing, sales and installation, dedicated to providing customized automated feeding solutions with strict management, rigorous quality control and continuous design optimization.

II. Core Product System

(I) Automated Feeding Equipment (Core Product)

1. Core Advantages
• Labor savings: Only 1 breeder for 300–500 gestating sows; 10 workers saved for a 10,000-head pig farm, reducing annual labor cost by about 720,000 RMB.
• High efficiency: Feeding 300 sows in 1 minute.
• Feed savings: Solve 90% of feed waste issues; save about 34 RMB per ton on bags and losses; reduce rodent damage by 0.5%.
• Precise feeding: Timed and quantitative, reduces fighting and stress, lowers abortion rate and improves sow turnover.
• Faster fattening: Finishing pigs market 10–15 days earlier.

2. Return on Investment (600 Sows / 10,000-head Farm)
• Gestation house: Annual income increase ≈ 100,000 RMB; payback in 2–3 years
• Nursery house: Annual savings ≈ 70,000 RMB; payback in 1 year
• Finishing house: Annual savings > 150,000 RMB; payback in 1+ years
• Total investment (truck feeding): ≈ 600,000 RMB (customizable)

3. Feed Silos

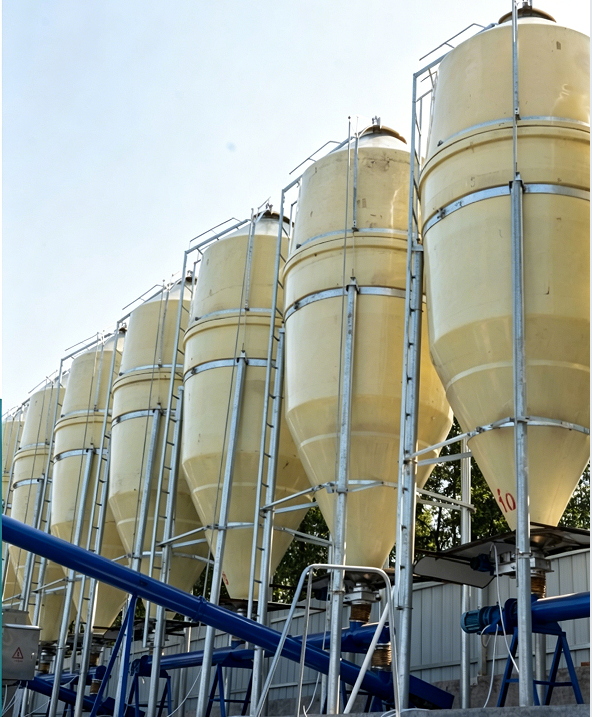

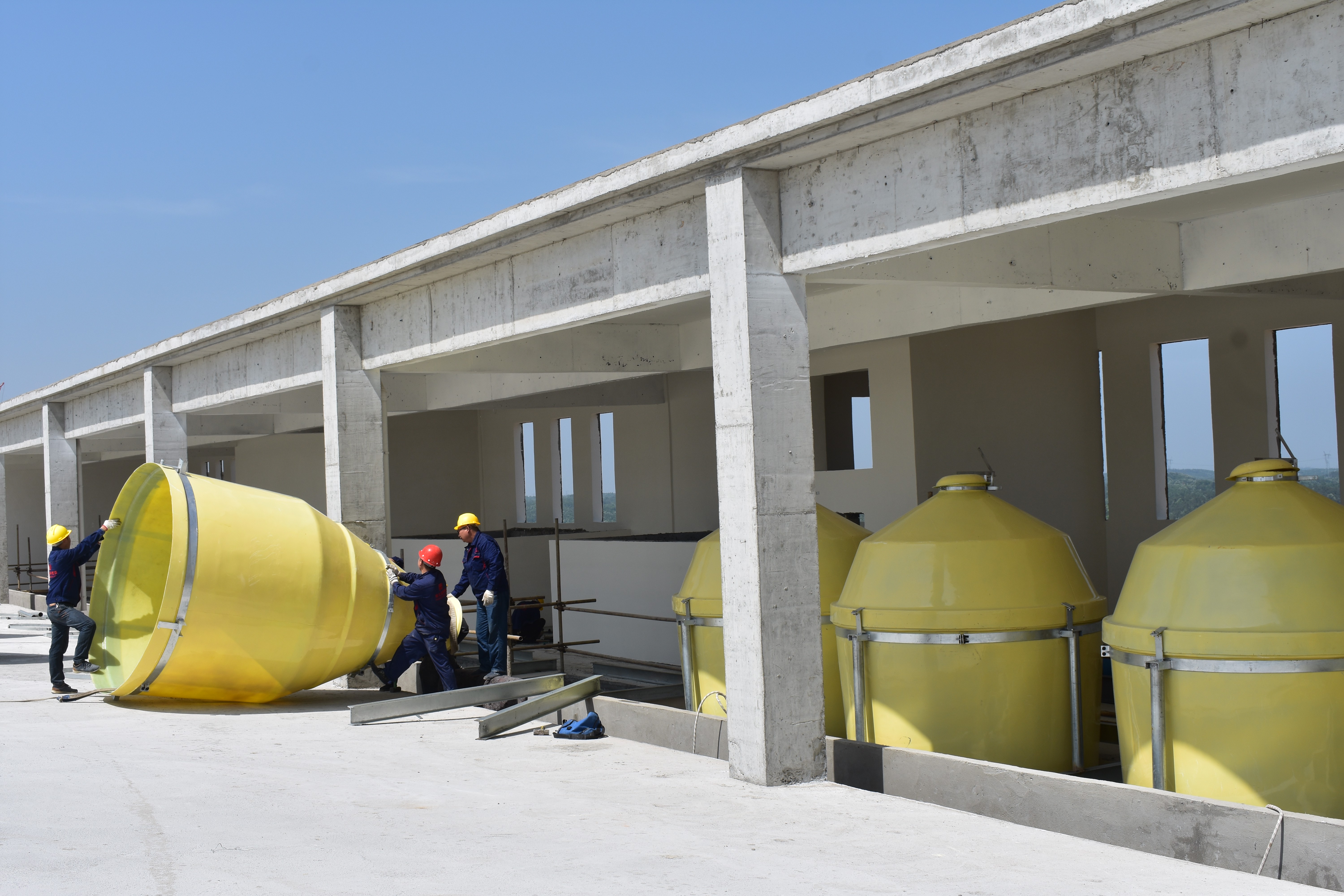

(1) FRP Silo

• Features: Corrosion resistance, acid/alkali resistance, good heat insulation, lightweight, high strength, lightning-proof.
• Craft: Special gel coat, hot-dip galvanized stand, 304 stainless steel screws, one-piece molding.
• Benefit: No feed bridging or residue on screws.

(2) Galvanized Steel Silo

• Anti-corrosion: Double-sided hot-dip galvanizing (275g/㎡); service life 15–30 years outdoors.
• Sealing: Clay seal + water guide + flanged edge; waterproof, moisture-proof, no mold or caking.
• Discharging: Polished inner wall, conical bottom, flow divider; no dead corners, no blockage.
• Others: Wind & earthquake resistant, rodent & insect proof, visible level window, easy transport & installation.

4. Automated Feeding Lines

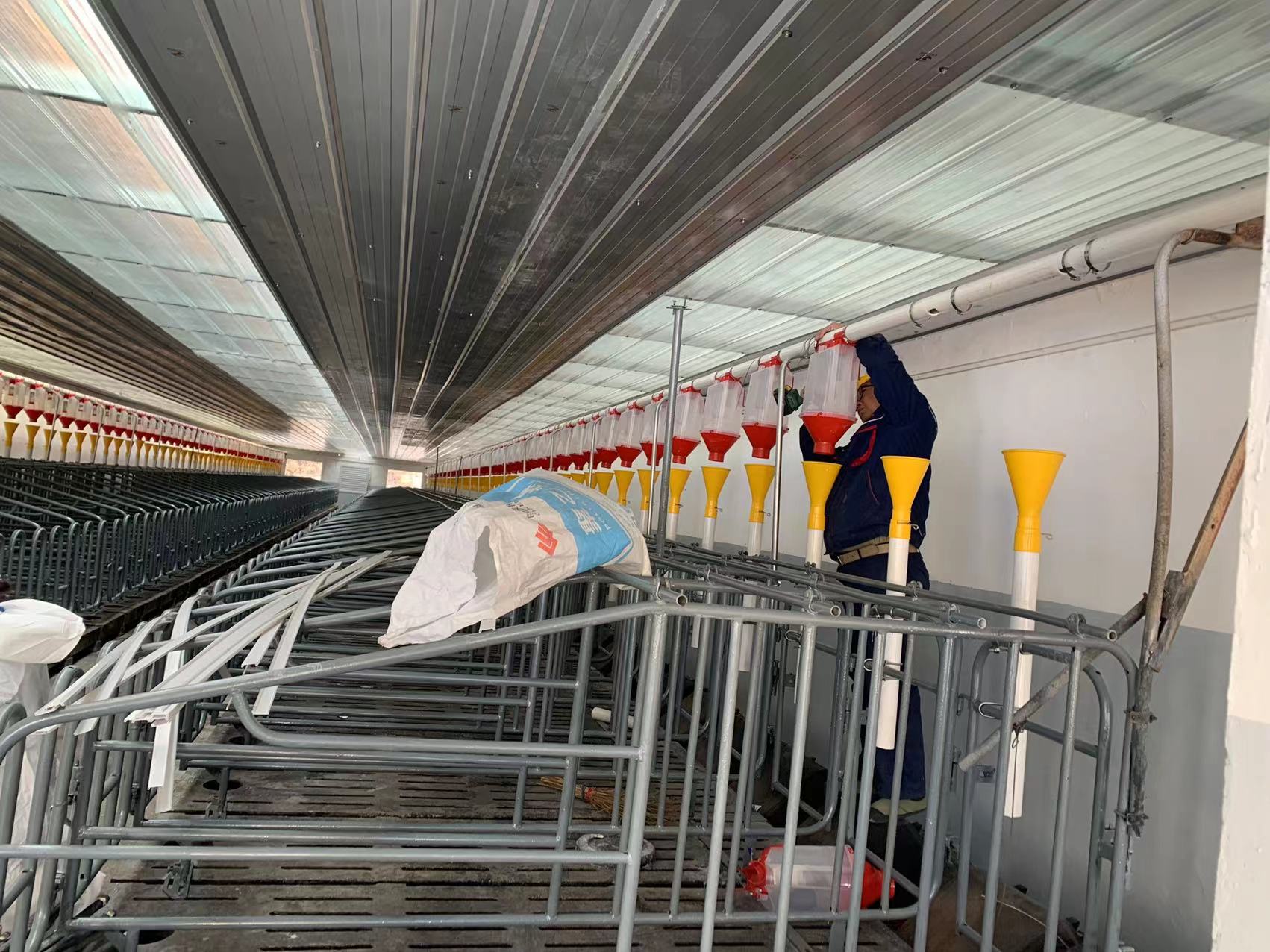

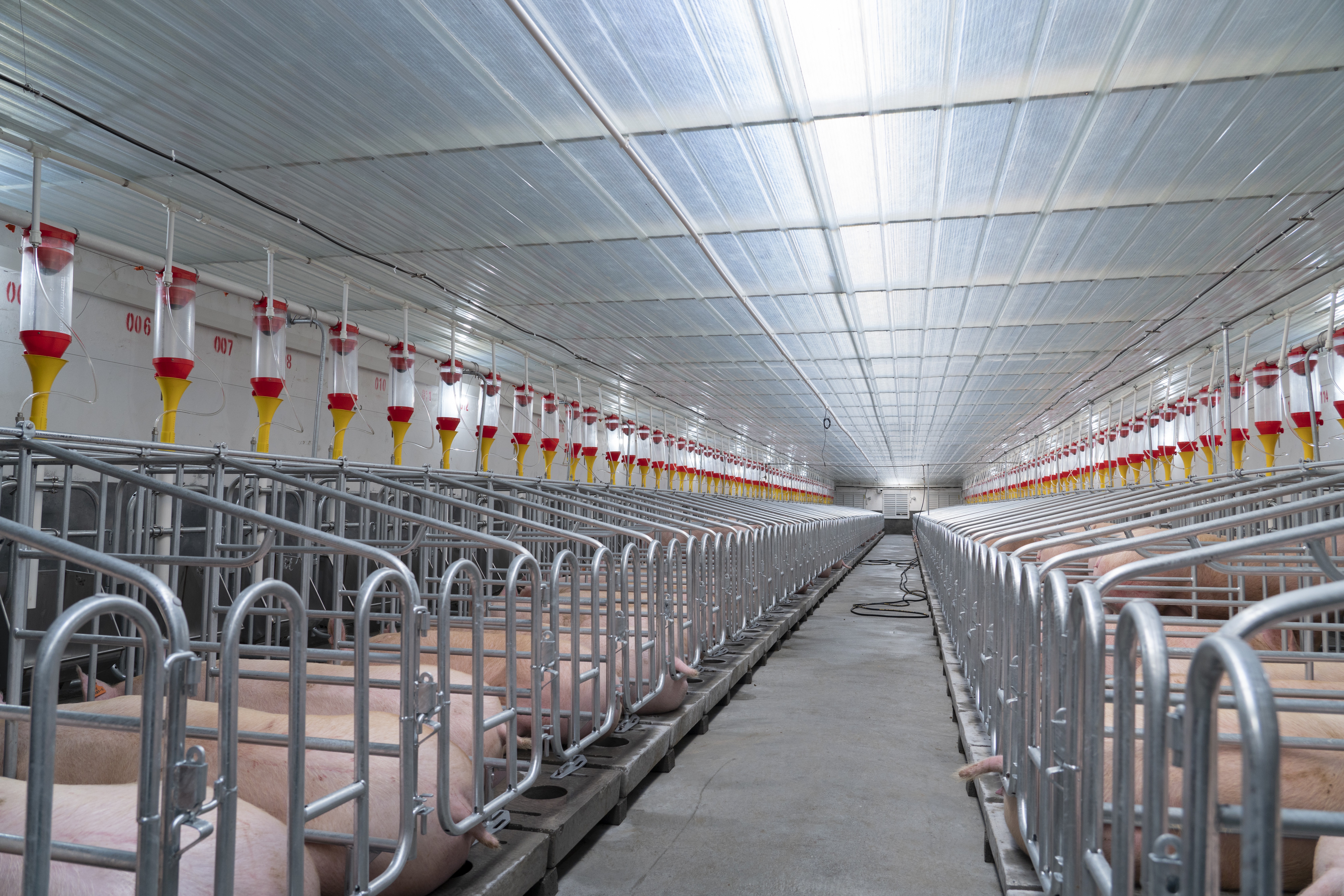

(1) FD-60 Quantitative Feeding (Sow)

• Max distance: 90m (extendable)
• Capacity: 700–800 kg/h
• Quantitative bucket: Pure new material, adjustable dosing, medicine port, record clip, precise control.

(2) FD-75 Ad-lib Feeding (Nursery/Finishing)

• Max distance: 80m
• Capacity: 1,200–1,500 kg/h

(3) FD-110 External Conveying

• Max distance: 50m
• Capacity: 3,500–4,500 kg/h

(4) Chain-Disk System Components

• Main engine: 304 stainless steel, 1.5/2.2KW motor, 1.2T/h output.
• Pipe: 1.5mm thickness, double-sided galvanized 275g/㎡.
• Chain-disk: 5mm chain, toughened nylon disk, high tensile strength.

(II) Environmental Control Equipment

1. Aluminum-Frame Cooling Pad
• Material: 15cm Jiamusi paper, 304 stainless steel anti-rodent net.
• Advantages: Corrosion resistant, high strength, lightweight, stable cooling.


2. FRP Exhaust Fan

• Structure: FRP casing & impeller, anti-corrosion shaft, IP55 motor.
• Features: Stable operation, large air volume, low noise, acid/alkali resistant.

3. Automatic Louvers

• Modes: Winter minimum ventilation (anti-draft); summer tunnel ventilation (high-volume cooling).
• Control: Automatic open/close by negative pressure.

(III) Air Filtration System

1. Function: Physical filtration blocks airborne pathogens; improves biosecurity.
2. 2-stage filtration:
Primary: Filters dust, insects, feathers.
Medium/High-efficiency: Filters particles ≥0.3μm and virus-carrying aerosols.
3. Working principle: Negative pressure air intake → multi-stage filtration → clean air supply.

(IV) Deodorization Equipment

• Filter material: PP polypropylene ball frame, acid/alkali resistant, large surface area.
• Process: Waste gas collection → pre-treatment → biological/chemical deodorization → clean emission.
• Advantage: No secondary pollution, meets environmental standards.

(V) Intelligent Feeder & Drinking Bowl

1. Intelligent Feeder

• Protection: IP66 waterproof.
• Functions: Anti-bridging, manual/auto mode, wet-dry mixing, no residue.
• Benefit: Auto rationing by age/headcount; reduces waste.

2. Stainless Steel Drinking Bowl

• Provides clean, sufficient drinking water; water-saving, splash-proof, easy to clean.
• Multiple sizes for sows, piglets and finishing pigs.

(VI) Floor Heating System

• Advantages:

1. Even floor heating; prevents piglet diarrhea and promotes growth.
2. Saves 20–30% energy vs. hot air heating.
3. No dust, better air quality, lower respiratory disease.
4. Service life ≈ 50 years, almost maintenance-free.
• Control: Multi-group electric boiler, adjustable for energy saving.

(VII) Silo Weighing System

• Components: 4 high-precision sensors + junction box + display terminal + mobile/PC platform.
• Functions: Real-time weight monitoring, feed remaining, days of use.
• Value: Precise feeding, waste reduction, remote management.

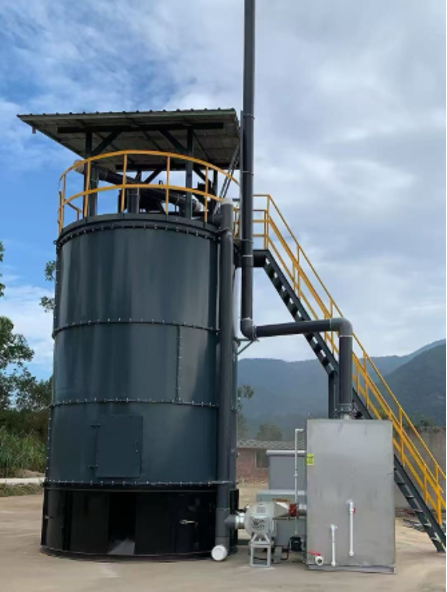

(VIII) High-Temperature Fermentation Tank (Manure Treatment)

一. Six Advantages
1. Emission up to standard, no secondary pollution.
2. Small footprint, fully automatic, one-person operation.
3. High-temperature aerobic fermentation, low running cost (20–40 RMB/ton).
4. Stainless steel body, anti-corrosion.
5. Insulated and auxiliary heated, works in low temperatures.
6. Manure converted to organic fertilizer, resource utilization.

二. Process

Feeding (manure + bacteria) → high-temp aerobic fermentation (7–12 days) → harmless organic fertilizer.

(IX) High-Pressure Cleaning System

• Configuration: Italian imported plunger pump, variable-frequency motor, PLC control, 304 stainless steel water tank.
• Functions: Multi-point cleaning, auto on/off, energy-saving, cleaning/disinfection switchable.
• Features: Closed frame, carbon steel with plastic spraying, zero power in standby.

(X) Generator Set

• Function: Auto start within 15 seconds on power failure; auto switch back when mains resumes.
• Safety: Dual control, IP52 cabinet, remote monitoring, lightning/vermin proof.
• Performance: 32% lower failure rate, 4% higher fuel efficiency; optional soundproof box, ATS cabinet.

(XI) Other Supporting Equipment

• Feed delivery trucks
• Pen accessories, farm tools and auxiliary facilities

III. Typical Projects

• 2,400-sow farm in Suizhou
• Nanping Lizhong Animal Husbandry Project
• Hubei Gongfu Animal Husbandry Project

IV. Service Commitment

We provide one-stop service: solution design → manufacturing → installation → training → after-sales support. Stable and durable equipment with personalized customization.
