Bulk Feed Truck Manual Operation

Preface

Thank you for choosing products manufactured by Hubei Gongfu Intelligent Equipment Co., Ltd. To help you better utilize our products, we provide this Operation and Maintenance Manual.

The bulk feed transport truck is a specialized vehicle developed by our company based on market and customer demand for the livestock industry. It undertakes the tasks of transporting, storing, and unloading bulk feed, grains, and other expanded media. The vehicle boasts stable and reliable performance, safe and labor-saving feed loading operations, convenient and efficient unloading, and enables one truck to interface with multiple silos, significantly reducing equipment costs and space requirements.

The truck's tank body is constructed using high-quality carbon steel plates in a fully sealed welded structure, offering advantages such as high strength, light weight, excellent sealing, and no secondary pollution. It fully complies with industry requirements for environmental protection and biological safety.

This model uses a Category II automotive chassis, equipped with an engine compliant with China VI emission standards. It features excellent power performance and fuel economy, good handling stability, strong load-bearing capacity, and is energy-saving and environmentally friendly. It is an ideal specialized vehicle for feed mills, farms, and logistics transport companies.

Our company implements a "three guarantees" (repair, replacement, return) quality policy, provides training for operators and maintenance personnel, and offers customers excellent pre-sales and after-sales service to eliminate any concerns.

This manual only describes the main technical parameters after modification, the structure of the modified parts, operation, maintenance, and other related content. Other performance aspects can be referred to in the automotive chassis manual. If you encounter difficulties or problems during use, please feel free to contact our company. As our product structures are continuously improved and refined, and we can design and produce special models based on user requirements, descriptions in this manual may differ from the actual vehicle structure. We appreciate your understanding.

User Notice: All technical parameters of our company's products are set correctly before leaving the factory. Do not privately adjust or alter vehicle parameters without contacting our after-sales service personnel. Any consequences resulting from such actions shall be borne solely by the customer!

Table of Contents

1.Main Technical Parameters....................................................... 1

2.Basic Structure and Working Principle............................................. 2

1.Basic Structure................................................................... 2

2.Working Principle................................................................. 3

3.Safety Precautions for Using the Bulk Feed Transport Truck...................... 3

4.Operation of the Bulk Feed Transport Truck...................................... 4

•(I) Running-in of New Vehicle...................................................... 4

•(II) Operational Procedures and Instructions....................................... 4

•(III) Precautions.................................................................. 7

5.Maintenance..................................................................... 8

•(I) Chassis Maintenance............................................................ 8

•(II) Working Device Maintenance.................................................... 8

•(III) Hydraulic Oil Usage Instructions............................................. 9

•(IV) Tank Lubrication Points Diagram.............................................. 10

6.Common Faults and Troubleshooting............................................... 11

7.Product Warranty Statement..................................................... 12

8.Factory Certificate............................................................ 13

9.Documents Supplied with Vehicle................................................ 14

1. Main Technical Parameters

As the driver, operator, or maintenance personnel for the bulk feed transport truck, you must be familiar with its main technical parameters, understand the basic structure and function of each part, the performance of various devices, and their interrelationships, to maintain good working condition and fully utilize the truck's capabilities.

2. Basic Structure and Working Principle

1. Basic Structure

The Gongfu Brand HGF5180ZSLF6 bulk feed transport truck is a new environmentally friendly feed transport vehicle modified using a Category II automotive chassis. The truck features a set of auger conveying superstructures. Power is taken from the chassis via the power take-off (PTO), driving the hydraulic pump through the transmission shaft. The hydraulic pump drives hydraulic motors which, in turn, drive the tank auger, the vertical lift auger, and the discharge auger. Hydraulic cylinder extension/retraction enables the lifting and lowering of the discharge auger. Worm gear rotation enables left/right adjustment (±180°) of the discharge auger. Opening the tank gate switch allows feed from a specific compartment to be released. Finally, feed is conveyed to the silo. The truck offers convenient feed handling, fast and easy unloading, excellent tank sealing, and eliminates secondary pollution, fully meeting the biological safety requirements of the livestock industry.

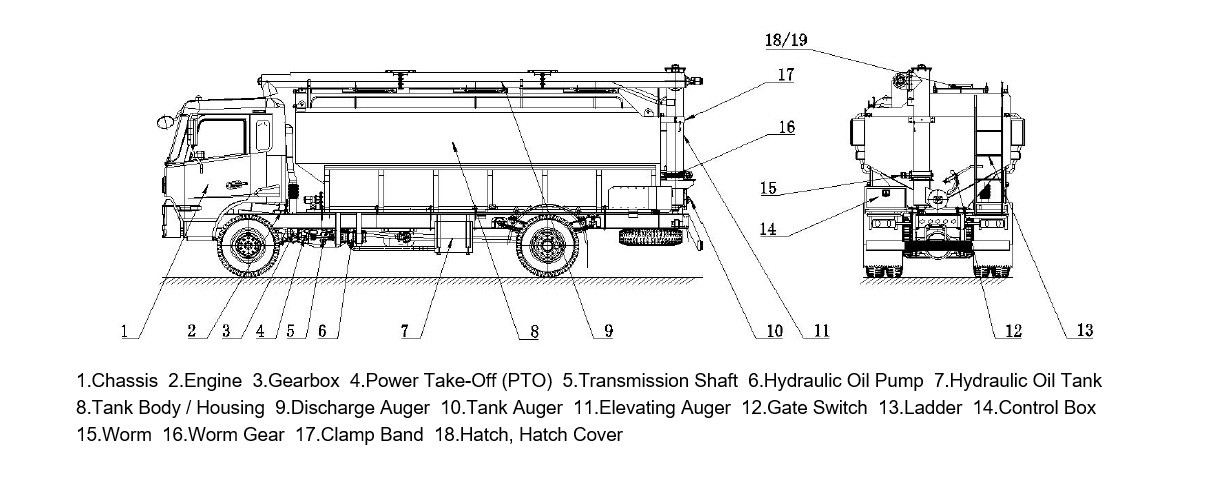

Basic Structure of the Bulk Feed Transport Truck:

1.1 Automotive Chassis:

Gongfu brand bulk feed transport trucks can use Dongfeng, Shacman, Liuqi, FAW Jiefang series, and other mature domestic Category II automotive chassis.

1.2 Tank Structure:

Composed of the load-bearing tank body, auger conveying mechanism, lifting and rotating mechanism, gate switch, loading hatches, hatch covers, ladder, etc. Performs tasks of loading, storing, and unloading bulk feed, grains, and other expanded media.

2.1.3 Hydraulic System:

This system consists of a hydraulic dual vane pump, manual multi-way valve, motors, and cylinders. The hydraulic pump is driven by the chassis PTO, converting mechanical energy into hydraulic energy. The high-pressure hydraulic oil discharged by the pump is directed through the multi-way valve's flow paths to drive the respective motors and cylinders, converting hydraulic energy back into mechanical energy, thereby achieving the unloading operation for bulk feed, grains, and other expanded media.

2.1.4 Control System:

Operated via the multi-way valve levers, it controls the corresponding hydraulic actuators to perform the required actions for unloading bulk feed, grains, and other expanded media.

2.1.5 Tank Structure:

The feed tank equipped with this vehicle is a sealed structure. The tank interior can be partitioned into multiple compartments to load different types of feed as needed. The top of the tank is equipped with loading hatches and covers. Opening the hatch covers allows feed loading into the compartments. The hatches are fitted with high-quality sealing strips for effective sealing to preserve feed freshness, prevent rainwater leakage, and ensure feed biological safety.

2.2. Working Principle:

2.2.1 Feed Loading: Open the hatch cover(s) on the top of the tank body and load an appropriate amount of feed into the compartment(s). Then securely close the hatch cover(s) to complete the loading operation.

2.2.2 Feed Transport: After completing the loading operation, ensure the hatch covers are locked and the gate is closed before commencing transport.

2.2.3 Lifting and Unloading: Drive the vehicle to the unloading position near the silo, apply the parking brake, and ensure the vehicle is stable. Depress the vehicle clutch pedal, engage the PTO switch, and slowly release the clutch pedal. The hydraulic pump will start working. After completing these actions, unloading operations can begin using the control system.

3. Safety Precautions for Using the Bulk Feed Transport Truck

1.Before operating this vehicle, carefully read the "Bulk Feed Transport Truck Operation and Maintenance Manual". Only operate the vehicle after familiarizing yourself with all operational steps.

During operation, stay clear of moving parts and areas where pinching or crushing can occur. Pay special attention to the safety of hands, arms, and head.

When loading feed, observe the work area first to ensure personnel safety.

Before working inside the tank body or under the vehicle, the following operations MUST be completed:

(1) Engine shut off, start key removed and kept in your pocket;

(2) Parking brake engaged;

(3) A "UNDER MAINTENANCE - DO NOT START" sign (self-made) hung on the steering wheel;

(4) Vehicle wheels securely chocked to prevent movement.

Strictly follow the maintenance regulations in this manual for equipment upkeep. Repair or replace components promptly when necessary.

Immediately replace any safety warning or operational instruction labels that are damaged or have illegible text.

If you discover any equipment malfunction or unsafe factor during use that could cause personal injury, notify our company promptly.

Chassis safety precautions should follow the regulations in the chassis manufacturer's manual.

4. Operation of the Bulk Feed Transport Truck

(I) Running-in of New Vehicle

Correct running-in significantly impacts the service life, reliability, and economy of the feed truck. Drivers must strictly adhere to the regulations for new vehicle running-in during the break-in period.

1.Chassis running-in mileage is 1000 km. The tank auger unloading device should operate no less than 30 times.

3.Preparations Before Running-in:

(1) Chassis: As per its instruction manual;

(2) Check if the chassis PTO engages and disengages normally;

(3) Check if the electrical system is working normally;

(4) Check if the hydraulic oil level in the tank meets requirements, and inspect all hydraulic component joints for oil leaks;

(5) Check the connection and tightness of all parts;

(6) Check all devices for looseness, wobbling, or jamming.

Running-in Requirements

(1) Chassis: As per its instruction manual;

(2) All devices should operate without load.

Precautions During Running-in Period

(1) Chassis: As per its instruction manual;

(2) Monitor if all devices are operating normally;

(3) Check hydraulic system components, joints, and welds for oil leaks; inspect oil pipes for damage.

Requirements After Running-in

(1) Chassis: As per its manual;

(2) Tighten all connecting bolts;

(3) Drain the hydraulic oil from the tank and fill with new hydraulic oil to the specified level.

(II) Operational Procedures and Instructions

(Note: The image text within the original document has been translated below the diagram description)

Hydraulic Bulk Feed Transport Truck Operation Guide

Discharge Auger - Strictly Prohibit Reverse Rotation!

Hydraulic Design Specifications - Lift/Lower Slowly & Carefully!

Position the vehicle at a suitable unloading spot, engage the parking brake. Prevent rolling! Engage the PTO.

Adjust the discharge auger position using the control valve so the outlet aligns with the silo inlet. Ensure the outlet tube does NOT touch the silo inlet directly to avoid damage during vibration.

Start the discharge auger (Forward Rotation), THEN start the tank auger (Forward Rotation). Follow this sequence strictly to prevent feed blockage.

Pull down the gate switch lever to open the gate and start unloading. Initially, do not open the gate fully to prevent fast feed flow causing auger blockage. Once flow stabilizes, open the gate fully for continuous unloading.

After the tank compartment is empty, FIRST stop the tank auger. Wait a few seconds, THEN stop the discharge auger.

Push the gate switch lever upwards to close the gate and secure it.

If unloading multiple compartments, repeat the above steps for each one.

After unloading all material, retract the augers. Operate the control valve to lift the discharge auger and rotate it to the appropriate position. Then, operate the control valve to lower the discharge auger onto the auger bracket on the vehicle body.

Depress the clutch and disengage the PTO switch in the cab.

Hydraulic System Warning: Avoid frequent or abrupt operation of the hydraulic control valve! This increases hydraulic system load and may cause overheating and component damage!

Prompt: Before starting unloading operations with the vehicle in neutral and parking brake applied, depress the vehicle clutch pedal, then move the PTO control lever to the "Engaged" position. Engage the PTO. Finally, slowly release the clutch pedal; the hydraulic pump will start working. Only after completing these actions can the unloading operation begin. When driving or not working, ensure the PTO control lever is returned to the "Disengaged" position. To disengage the PTO, depress the clutch pedal first, then operate the lever.

※ Precautions

Ensure vehicle and personnel safety. Before parking to unload, observe the surrounding environment for safety. Park the vehicle on level, firm ground, away from buildings, overhead power lines, and other obstacles.

If equipped with a discharge chute dust cover, OPEN it BEFORE lifting the discharge auger.

Strictly prohibit performing left/right rotation when the discharge auger is NOT in the raised position.

Strictly prohibit standing under the discharge auger arm when it is in the raised position.

Do not exceed the vehicle's rated payload capacity. For this series, the rated payload must not exceed 9000 kg. Overloading may cause vehicle fishtailing or even rollover during transit.

In cold winter temperatures: If operating the multi-way valve controls yields no response, briefly increase engine RPM ("blip" the throttle). Wait for the hydraulic system to circulate and warm up, then operate the multi-way valve again.

After completing unloading operations, promptly disengage the PTO to ensure the hydraulic pump is not running, especially when the vehicle engine is shut off.

Generally, do not adjust the pressure settings of the hydraulic multi-way valve. All settings are calibrated before the vehicle leaves the factory.

Before moving the vehicle, ensure the discharge auger is fully retracted and secured on its bracket as per the steps above to avoid hazards.

When the lift cylinder nears its full extension limit (i.e., the discharge auger reaches its maximum elevation angle, approx. 60°), release the multi-way valve lever to stop the cylinder. Avoid reaching the extreme limit routinely, as this increases system pressure unnecessarily and can damage hydraulic components and structures.

Special Reminders:

Strictly prohibit transporting any media other than bulk feed, grains, or other expanded granular media!

Loading and unloading operations must be conducted on level ground!

When cleaning, disinfecting, or drying the vehicle, ALWAYS disconnect the vehicle power supply and drain the air reservoir!

Do not exceed the rated payload capacity of the tank body!

(III) Precautions:

Pre-Departure Checks: In addition to the requirements specified in the chassis manual, inspect the following items before departure. Resolve any issues promptly.

(1) Hydraulic oil level in the tank meets requirements;

(2) Hydraulic lines, joints, and mating surfaces for oil leaks;

(3) PTO functions correctly;

(4) Working devices operate flexibly without jamming;

(5) Tire pressure meets specifications.

During Operation: Follow the chassis manual. Additionally:

(1) Strictly control the media load; overloading is prohibited;

(2) Monitor for abnormal noises or odors during operation. Troubleshoot faults immediately; operation with faults is strictly prohibited.

Post-Operation Checks: After completing work and parking, follow the chassis manual checks and also:

(1) Check hydraulic oil level;

(2) Check if control valve levers operate flexibly, reliably, and lock/detent/auto-return correctly;

(3) Check hydraulic components, joints, and mating surfaces for oil leaks;

(4) Inspect working devices for damage;

(5) Clean residual material from the tank and working devices.

5. Maintenance

Strictly follow the prescribed maintenance schedule to keep all systems and devices in good working order, maximize their efficiency, reduce fuel consumption, save costs, and extend the service life of the feed truck as much as possible.

(I) Chassis Maintenance

The chassis must be maintained strictly according to its instruction manual, including daily, weekly routine checks, and scheduled maintenance at 3000km, 12000km, 24000km, 48000km, and 80000km.

(II) Working Device Maintenance

Maintenance for the working devices should generally follow the regulations below. If the working devices can be maintained in good condition, their maintenance can be synchronized with the chassis schedule.

1. Daily Maintenance

Focuses on cleaning and observation. Content is the same as point 3 in the "Precautions" section under Truck Usage (Section 4).

2. Maintenance After 100 Operating Hours

Focuses on tightening and lubrication.

(1) Check and tighten connecting bolts on the tank, working devices, shafts, etc.

(2) Lubricate all designated points with grease or oil on schedule;

(3) Check and tighten connecting bolts, joints, pipe clamps, etc., in the hydraulic system. Check for oil leaks;

(4) Check if the PTO is working normally.

3. Maintenance After 500 Operating Hours

Focuses on adjustment.

(1) Check working device components for slight deformation; correct if necessary;

(2) Check wear condition of sealing strips; replace if necessary;

(3) Check if hydraulic components function correctly; disassemble, inspect, or replace if necessary. Replace seals if leaks are found.

4. Maintenance After 1500 Operating Hours

Focuses on comprehensive technical inspection and adjustment of all working devices to eliminate potential hazards.

(1) Inspect and repair welds, especially in critical areas;

(2) Check wear and operational condition of components; replace worn or malfunctioning parts;

(3) Inspect all hydraulic components;

(4) Clean the hydraulic oil tank, all filters, the air breather, and hydraulic lines. Replace the hydraulic oil. Replace damaged seals and hoses promptly.

(III) Hydraulic Oil Usage Instructions

Initial Change: For a new vehicle, replace with new brand-name hydraulic oil within the first three months.

Subsequent Changes: Depending on usage frequency, replace every 6 months to 1 year thereafter.

Viscosity Selection:

Average ambient temperature 40°C to 10°C: Use ISO VG 68 Hydraulic Oil.

Average ambient temperature 10°C to -10°C: Use ISO VG 46 Hydraulic Oil.

Average ambient temperature -10°C to -30°C: Use ISO VG 32 (or L-HV 32) Hydraulic Oil.

(IV) Tank Lubrication Points Diagram

(Note: The table below translates the lubrication chart information)

Bulk Feed Transport Truck Tank Lubrication Points Diagram

Maintenance Requirements: All bearing points require lubrication every 4 shifts. Other points require monthly lubrication.

Tip: This form can be photocopied for future record-keeping.

For any questions, contact your sales representative or call: +86 18771326123. We will respond promptly.

6. Common Faults and Troubleshooting

If the following fault phenomena are encountered during use, users can refer to this table for repair.

7. Warranty Card

(Note: This section lists the fields on the warranty card)

Warranty Card

8. Product Warranty Statement

Thank you for choosing our products. Your support and trust are the driving force behind our progress.

From the date of purchase, our product has a one-year warranty period. We provide free repair services (excluding issues caused by human factors). If vehicle malfunction is caused by improper user operation, our company will handle the repair, but all costs shall be borne by the user.

Exclusions: All rubber parts, valves, fittings, and electrical components are considered wear parts. Wear parts are NOT covered under the three-guarantee (warranty) service.

Contact Us: If you encounter any product problems, please contact us immediately. Our after-sales personnel are dedicated to serving you.
